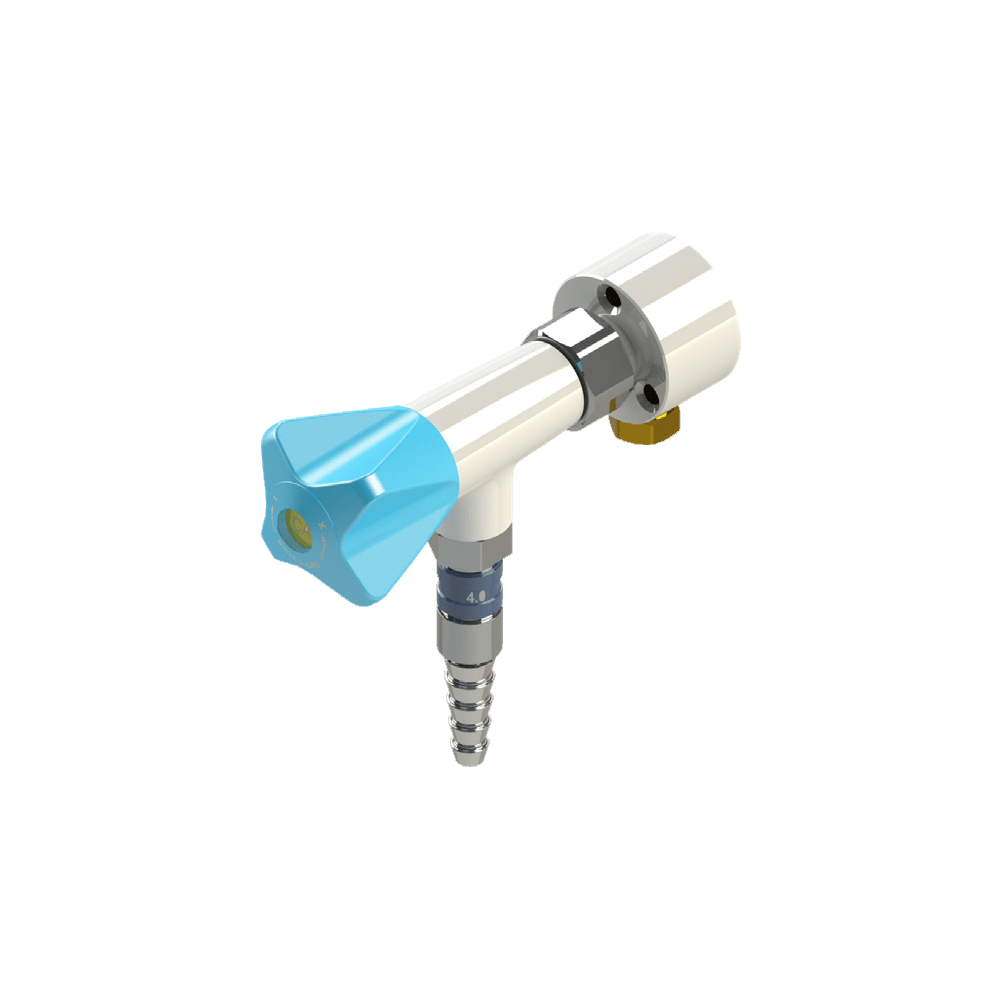

Wall Mounted Fittings with 90° Valves for Exposed Piping for non-burning 4.0 gases | BROEN
€212.75 – €284.25 ex. VAT
Description
BROEN-LAB UniFlex™ PREMIUM Wall Mounted Fittings for non-burning 4.0 gases ensure safe and efficient oxygen service in laboratory environments. Their 90° valve design enables easy access and smooth operation, making them ideal for exposed piping setups. Additionally, the BROEN-LAB POLYCOAT powder coating enhances durability by resisting chemicals, UV fading, and heat.
Moreover, these fittings come with either a fixed metal nozzle or a quick-release coupling, providing secure and adaptable connections. Designed to meet modern laboratory standards, they combine high quality and durability with a low life cycle cost.
Most importantly, the system’s flexibility allows various connection methods, such as hoses, Cu, PEX, or stainless steel pipes, without requiring a valve replacement. This adaptability makes them a reliable and cost-effective choice for laboratory applications.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 251 1021-T – 2530 252 1021-T |
| Media type | Compressed Air, Oxygen, Nitrogen, Carbon Dioxide, Argon, Helium, Dinitrogen monoxide |
| Mounting | Wall |
| Handle | Polypropylene with media indication according to EN13792 |
| Head nozzle | Metal, fixed (can be unscrewed with Allen key, thread: male G3/8) |
| Headwork | Needle |
| Opening/closing function | 3 x 360° |
| Max. working pressure | 16 bar / 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metal with media contact | Brass |
| Plastics with media contact | PVDF, PTFE (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Nozzle type | Fixed nozzle, With quick release coupling (hexagon coded) |
Related products
Double Wall Fittings with Straight Valves 4.0 gases | BROEN
€284.75 – €441.00 ex. VAT
Double Wall Fittings with 90° Valves 4.0 gases | BROEN
€284.75 – €447.00 ex. VAT

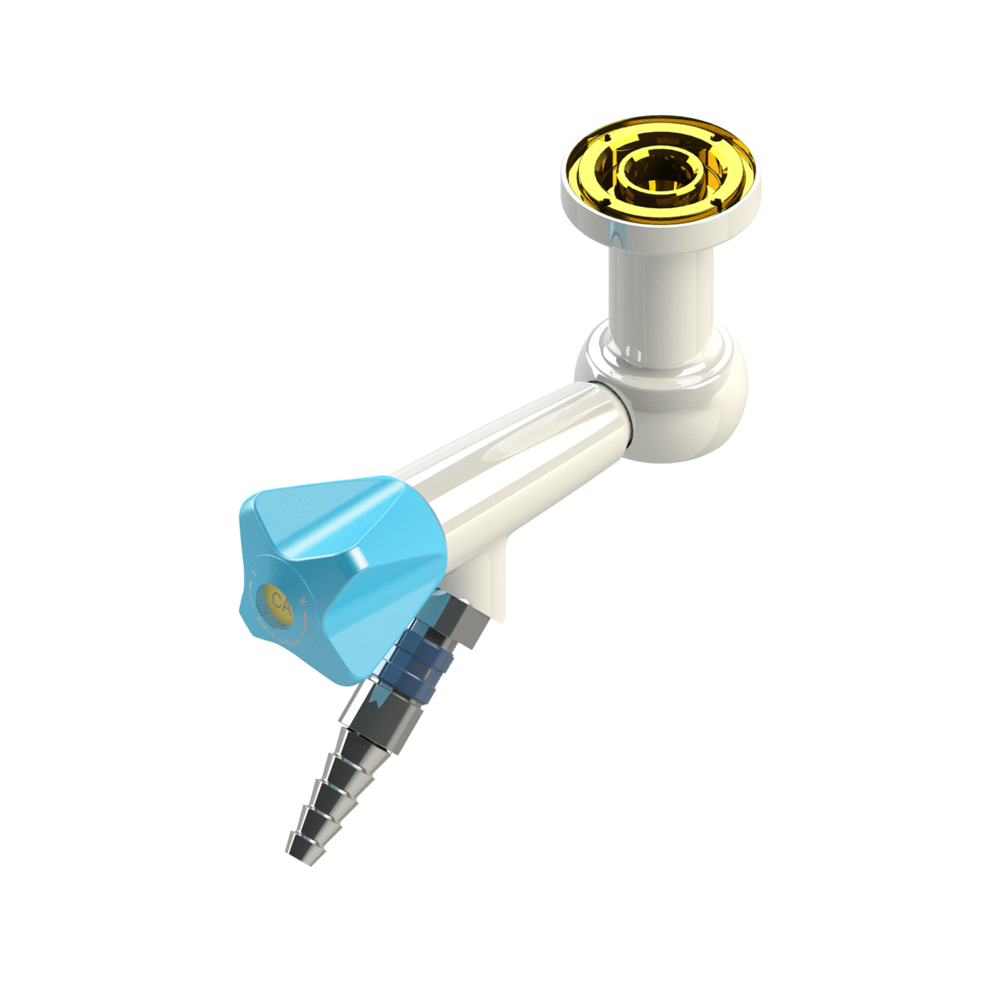

Suspended Fittings with 45° Valves for non-burning 4.0 gases | BROEN
