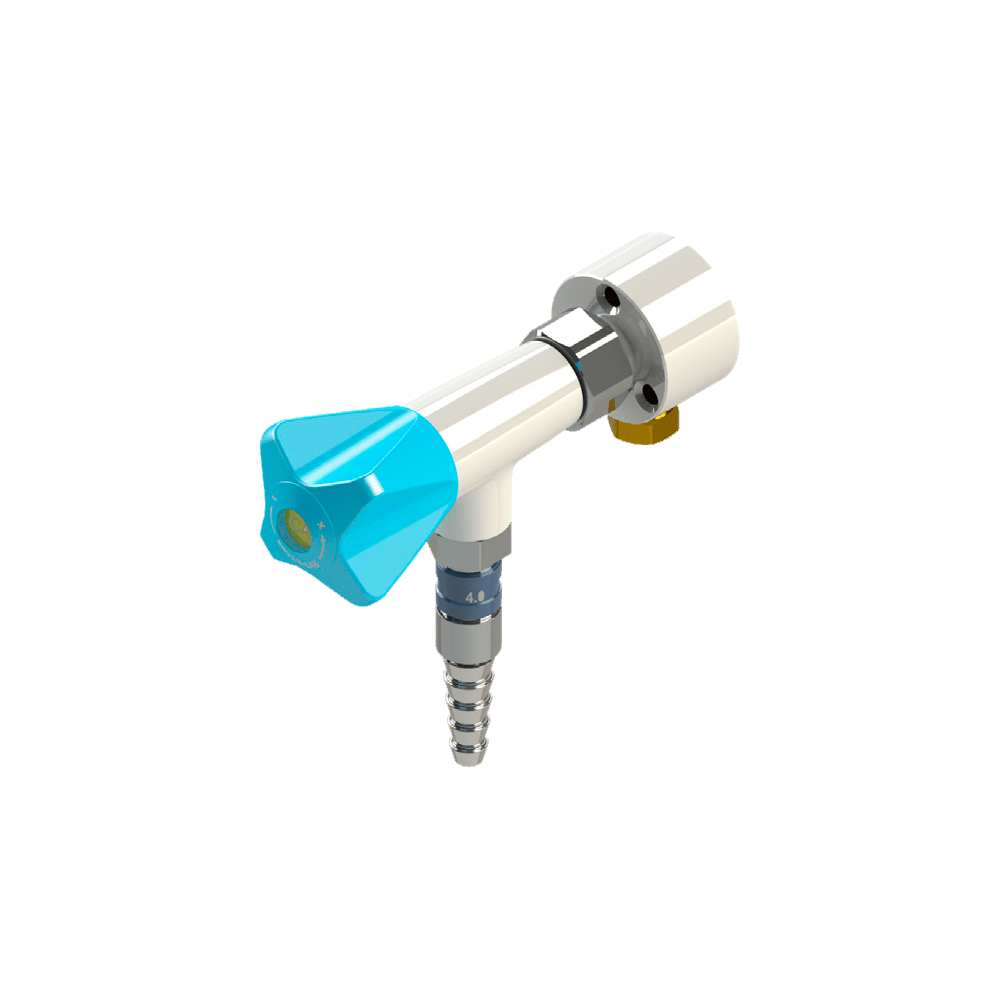

Wall Mounted Fittings with 90° Valves for Exposed Piping | BROEN
€144.00 – €210.50 ex. VAT
Description
BROEN-LAB UniFlex™ Wall Mounted Fittings with 90° valves provide secure and efficient connections for exposed piping in laboratory environments. Their robust construction, featuring a fixed metal nozzle, ensures reliability and long-lasting performance. Additionally, the 90° valve design allows smooth operation and precise gas flow control, making them suitable for various applications.
Moreover, the BALLOFIX® ball valve enables local shut-off and pre-setting, offering flexibility for experimental setups. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV fading, and heat, ensuring durability even in harsh conditions.
Most importantly, these fittings support multiple connection methods, including hoses, Cu, PEX, or stainless steel pipes, without requiring valve replacement. This adaptability improves efficiency while reducing installation costs, making them an ideal choice for laboratory use.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 177 1021-T – 2530 180 1028-T |
| Media type | Compressed air, Nitrogen, Carbon dioxide, Argon, Helium, Low vacuum (1000 to 1 mbar) |
| Mounting | Wall |
| Handle | Polypropylene, media indication according to EN13792 |
| Hose nozzle | Polypropylene, fixed (can be unscrewed by hand, thread: male G3/8) |
| Headwork 2.0 gases | Needle |
| Headwork vacuum | High flow |
| Opening /closing function 2.0 gases | 3 x 360° |
| Opening /closing function vacuum | 1.5 x 360° |
| Max working pressure 2.0 gases | 16 bar / 232 psi |
| Working pressure vacuum | -1 bar to 16 bar / -14.5 psi to 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metals with media contact | Brass |
| Plastics with media contact | PVDF, PP, SPX (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Connection type | With fixed nozzle, With hexagon coded quick release coupling |
