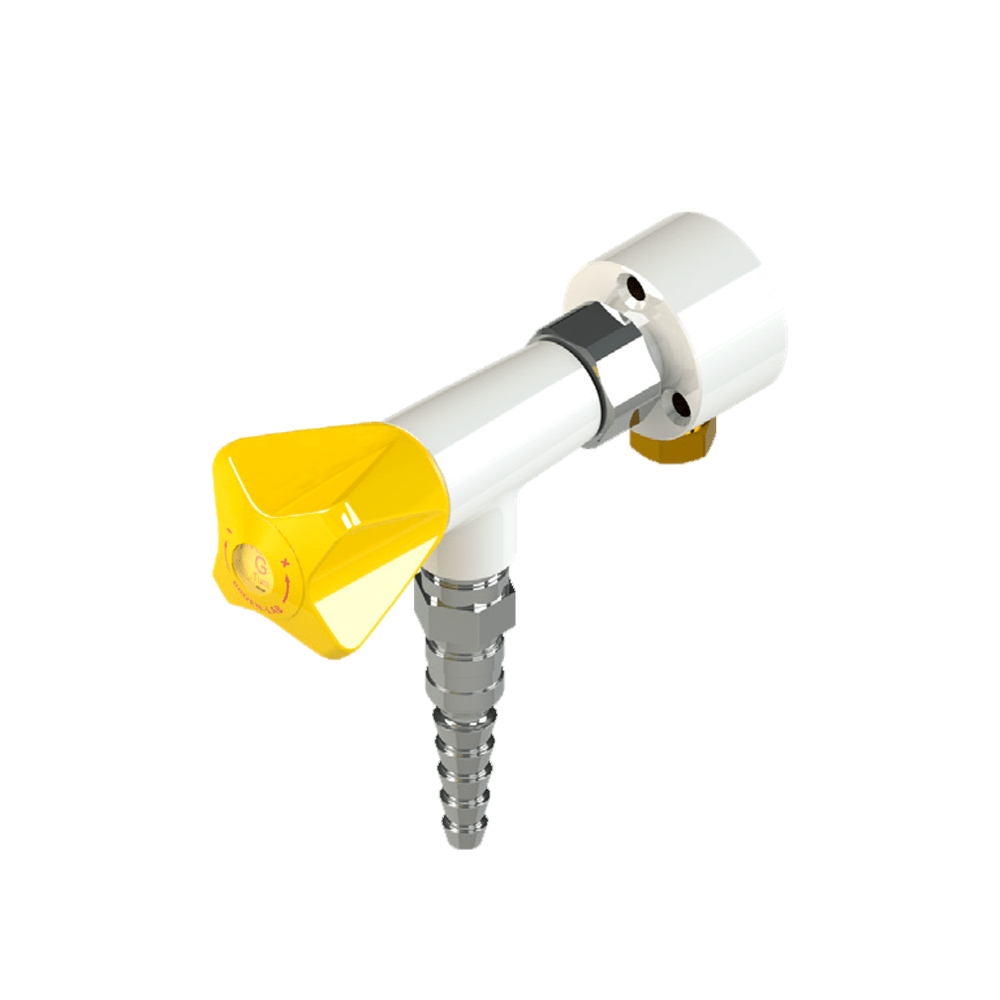

Wall Mounted Fittings for Exposed Piping | BROEN

154.75213.50 ex. VAT

Description

The Wall-Mounted Fittings for Exposed Piping by BROEN ensure both efficiency and safety in laboratory environments. To start, their robust design provides optimal control and effortless operation, making adjustments seamless. Additionally, the quick-release coupling allows for fast and secure connections, ensuring adaptability for various applications.

Moreover, these fittings prioritize durability. Constructed from high-quality materials, they deliver long-lasting performance, even under demanding conditions. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV light, and heat, maintaining reliability in laboratory settings.

Most importantly, these fittings meet rigorous industry standards. With a maximum working pressure of 7 bar and temperature limits from 5°C to 60°C, they provide dependable functionality, making them a practical and efficient choice for modern laboratories.

Additional information

Weight1 kg
Model

2530 171 1031-T, 2530 217 1031-T, 2530 171 1032-T, 2530 217 1032-T, 2532 125 1031-T, 2532 126 1031-T, 2532 125 1032-T, 2532 126 1032-T

Media type

Natural gas, Liquefied petroleum gas

Mounting

Wall

Handle

Polypropylene with media indication according to EN13792

Hose nozzle

Metal fixed

Headwork

Ceramic press/turn

Opening/Closing function

90°

Max. working pressure

7 bar / 102 psi

Allowable trest pressure after installation

10 bar without function of the valve

Metals with media contact

Brass

Sealing with media contact

Nitrile (NBR)

Lubricant with media contact

Mineral oil based

Ceramics with media contact

AI2O3 96%

Valve orientation

90° valve, Straight valve

Nozzle Type

Fixed nozzle, With quick release coupling

View Specification
