Wall Mounted Fitting with Swivel Spout with Plastic Inner Tube | BROEN
€196.25 – €215.00 ex. VAT
Description

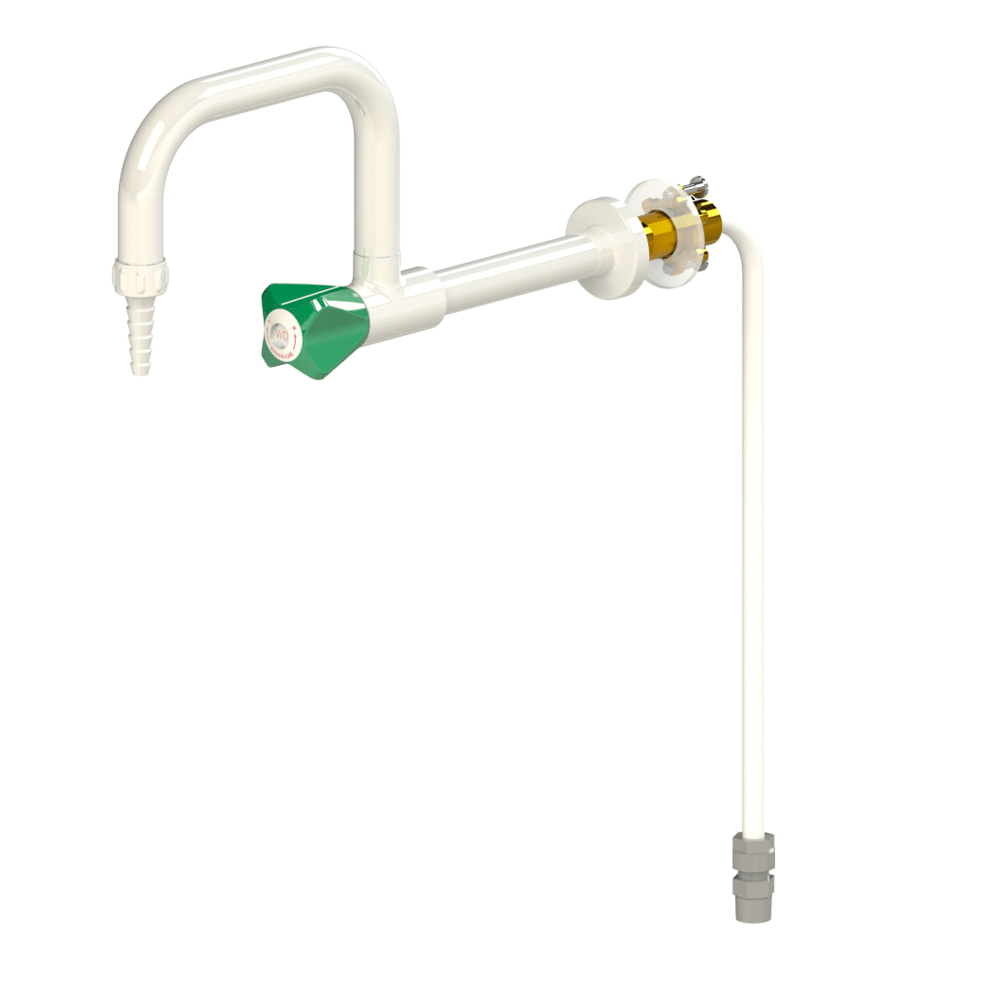

BROEN-LAB UniFlex™ wall mounted fittings with a swivel spout and plastic inner tube ensure secure and efficient connections for gases and liquids in laboratories. To start, their robust construction, featuring a full swivel action spout, allows flexible and precise operation. Additionally, the plastic inner tube, made from Linear Low-Density Polyethylene (LLDPE), maintains high purity and prevents contamination, making it ideal for purified water and sensitive media.
Moreover, these fittings feature a durable polypropylene handle and a removable polypropylene hose nozzle, ensuring easy maintenance and long-term reliability. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV fading, and heat, preserving performance in demanding conditions.
Most importantly, the UniFlex™ system supports various connection methods, including hoses, Cu, PEX, or stainless steel pipes, without requiring valve replacement. As a result, it reduces total installed costs (TIC) while increasing efficiency for installers and end-users. These features make it a practical and adaptable choice for laboratory setups.
Additional information
| Weight | 1.4 kg |
|---|---|
| Model | 2533 051 1003-09, 2533 052 1003-09, 2533 053 1003-09, 2533 054 1003-09, 2533 051 1036-09, 2533 052 1036-09, 2533 053 1036-09, 2533 054 1036-09 |
| Media type | Distilled water, Deionized cold water |
| Handle | Polypropylene |
| Media indication | according to EN13792 |
| Mounting | Wall |
| Headwork | Diaphragm type |
| Opening/Closing function | 1 1/2 x 360° |
| Max. working pressure | 10 bar / 147 psi at 20°C, 6 bar / 87 psi at 65°C |
| Test pressure | 1 x working pressure |
| Weight | 1.2 |
| Diaphragm with media contact | PTFE |
| Rubber with media contact | EPDM |
| Plastics with media contact | LLDPE, POM, PP, PVDF |
| Spout Length | S150mm, S200mm, S250mm, S300mm |
| Connection type | With G3/8 push-in fitting, Without push-in fitting |
