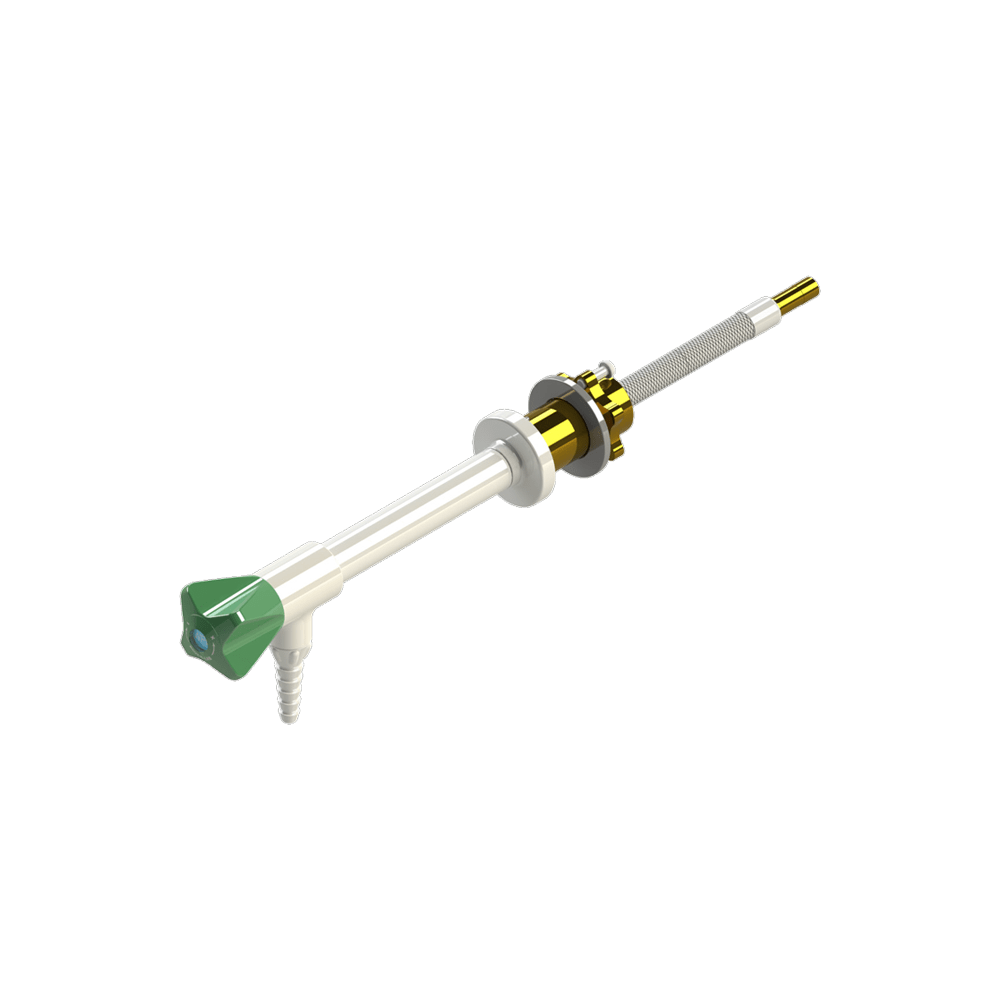

Wall Mounted Fitting | BROEN
€129.25 – €132.50 ex. VAT
Description
BROEN’s Wall Mounted Fitting enhances laboratory efficiency with durable construction and precise functionality. Crafted from high-quality materials, it features BROEN-LAB POLYCOAT powder coating, ensuring exceptional resistance to chemicals, UV fading, and heat.
Most BROEN-LAB UniFlex™ water fittings include a fixed polypropylene hose nozzle and handle, delivering reliable performance. Additionally, users can choose fittings with an integrated check valve to prevent backflow, enhancing safety and control.
To streamline installation, the fittings come with an easy-to-mount anti-rotational mounting kit, allowing for a quick and secure setup. Moreover, the spout standoff is available in either a 150mm or 200mm option, providing flexibility for different laboratory requirements.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2533 136 1001-52B, 2533 136 1007-52B, 2533 137 1001-52B, 2533 137 1007-52B |
| Media Type | Potable water, Non-potable water |
| Mounting | Wall |
| Spout Standoff | 150mm, 200mm |
| Handle | Polypropylene, with media indication according to EN13792 |
| Hose Nozzle | Fixed olypropylene (can be unscrewed by hand, thread: male G3/8) |
| Headwork | Rubber (wrist action lever: ceramic) |
| Opening / Closing Function | 2 x 360° (wrist action lever: 90°) |
| Temperature Range | 0-65°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 1kg |
| Metals with media contact | Brass |
| Plastics with media contact | PP, SPX (hose) |
| Sealing with media contact | EPDM |
| Lubricants with media contact | Silicone based |
| Ceramics with media contact | Al2O3 96% (wrist action lever only) |
