Turret Fittings Non-Burning 2.0 gases | BROEN
€116.00 – €497.50 ex. VAT
Description

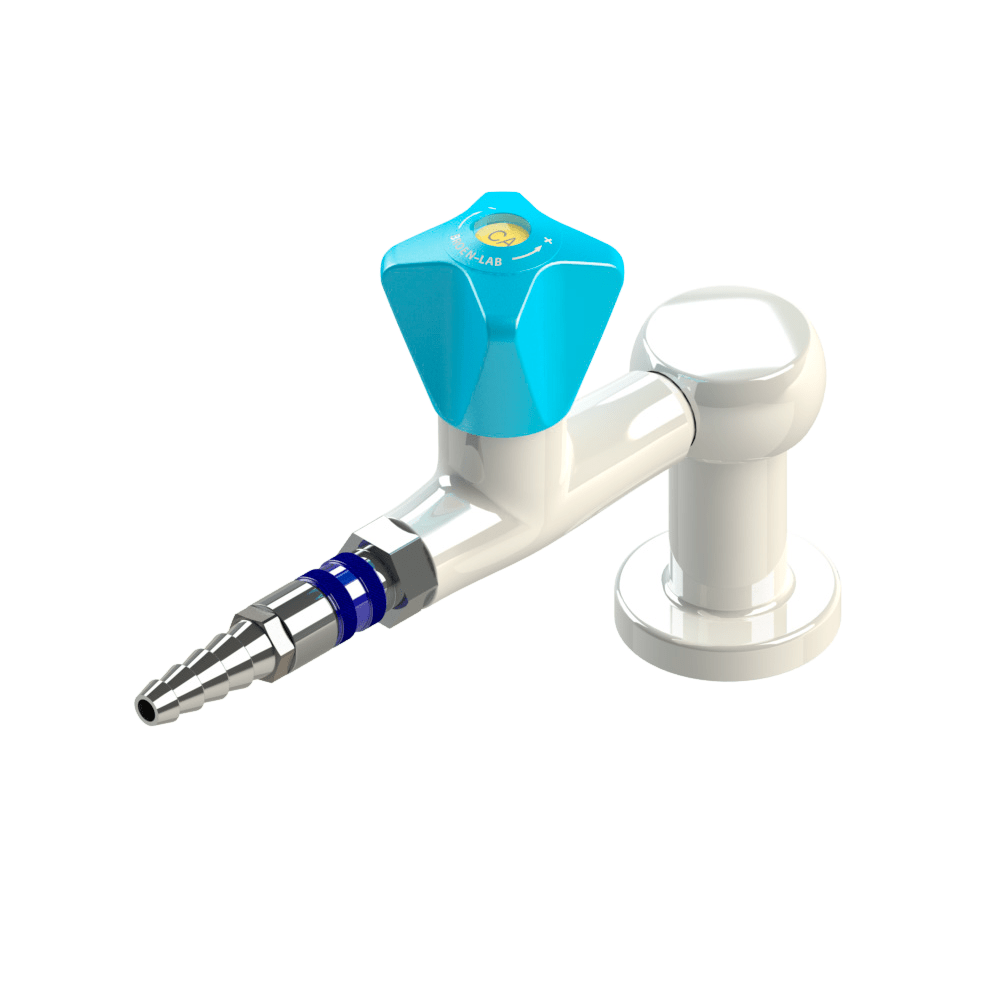

BROEN-LAB UniFlex™ Turret Fittings for non-burning 2.0 gases deliver precise control and versatility for laboratory applications. To begin with, the standard needle headwork allows fine regulation of media flow. The valve fully opens after three 360° handle rotations, ensuring efficiency and ease of use.
Moreover, for vacuum applications, the fittings feature a high-flow headwork. If higher flow is required for other media or if the valve needs to act as a shut-off, a high-flow headwork for 2.0 non-burning gases is available. This added flexibility ensures the fittings meet diverse operational requirements.
Furthermore, when extremely low media flow rates are necessary, the micro-flow headwork provides highly precise regulation. As a result, the UniFlex™ Turret Fittings adapt seamlessly to a wide range of laboratory needs, ensuring consistent performance and reliability in critical applications.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2532 001 1021-52B, 2532 014 1021-52B, 2532 008 1021-52B, 2532 020 1021-52B, |
| Media type | Compressed air, Nitrogen, Carbon dioxide, Argon, Helium, Low vacuum (1000 to 1 mbar) |
| Mounting | Bench |
| Handle | Polypropylene, media indication according to EN13792 |
| Hose nozzle | Polypropylene, fixed (can be unscrewed by hand, thread: male G3/8) |
| Headwork 2.0 gases | Needle |
| Headwork vacuum | High flow |
| Opening /closing function 2.0 gases | 3 x 360° |
| Opening /closing function vacuum | 1.5 x 360° |
| Max working pressure 2.0 gases | 16 bar / 232 psi |
| Working pressure vacuum | -1 bar to 16 bar / -14.5 psi to 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metals with media contact | Brass |
| Plastics with media contact | PVDF, PP, SPX (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Number of valves | 1-valve, 2-valve 90°, 2-valve 180°, 4-valve |
| Connection type | With fixed nozzle, With hexagon coded quick release coupling |
