T-Connection Tubes for Waste Pipes | b.safe
€203.11 ex. VAT
Description

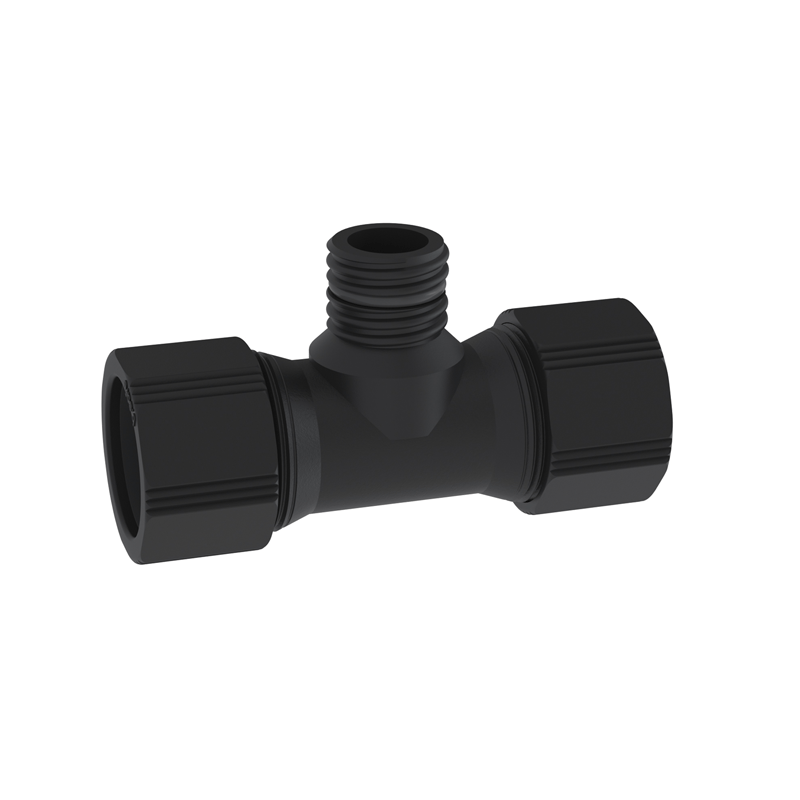

The T-Connection Tubes for Waste Pipes ensure secure and efficient connections in laboratories and industrial environments. Made from static dissipative PE-EX, they support safe waste liquid handling, making them ideal for HPLC, UPLC, ÄKTA, and PE-EX systems.
Additionally, these T-shaped connectors feature clamp connections on both sides for inserting and clamping Waste Pipes with an outer diameter of 32 mm. Meanwhile, the central connection has a male thread GL25, allowing easy mounting of Waste Tubes.

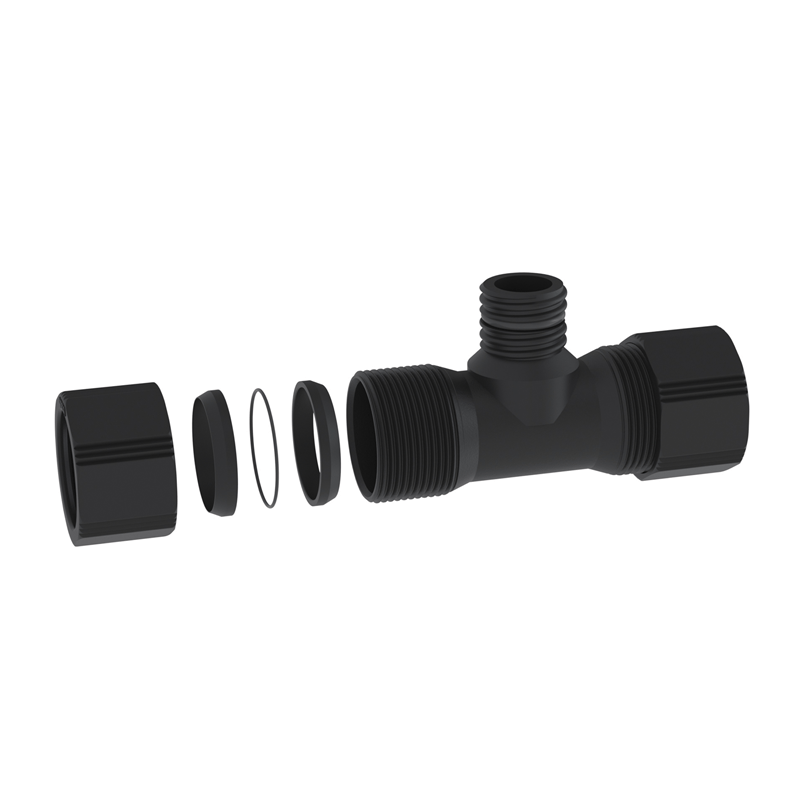

Moreover, each clamp connection includes:
- A lock nut in PE-EX, ensuring stability
- Two conical sealing rings in PTFE-EX, providing a tight seal
- An O-ring in EPDM, preventing leaks and maintaining system integrity
Furthermore, the static dissipative properties of PE-EX help prevent static buildup, enhancing safety in environments where flammable solvents are used. By ensuring leak-proof connections, these tubes contribute to efficient and secure waste management.
Additional information
| Chemical resistance: | ++ very good |
|---|---|
| Temperature resistance: | from -50°C to +80°C |
| Conductivity: | 1.000 kOhm |
| Material: | PE-EX, PTFE-EX |
| Total length [mm] | 110 |
| Shape | T |
| Lateral connections | clamp connection Ø 32 mm |
| Central connection | GL25 male |
