System Waste Caps TLC | b.safe
€579.26 – €605.55 ex. VAT
Description

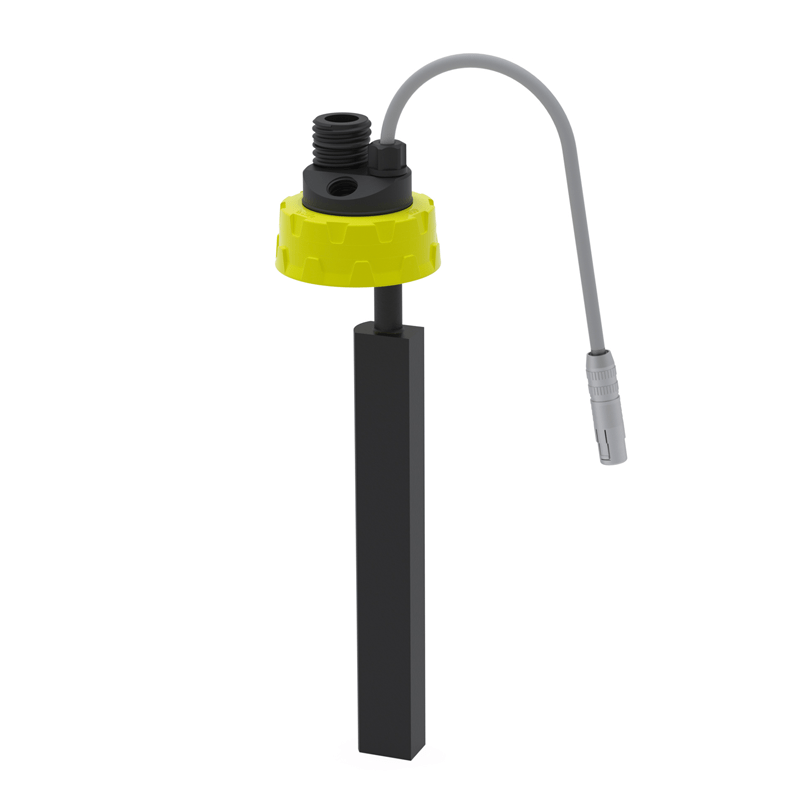

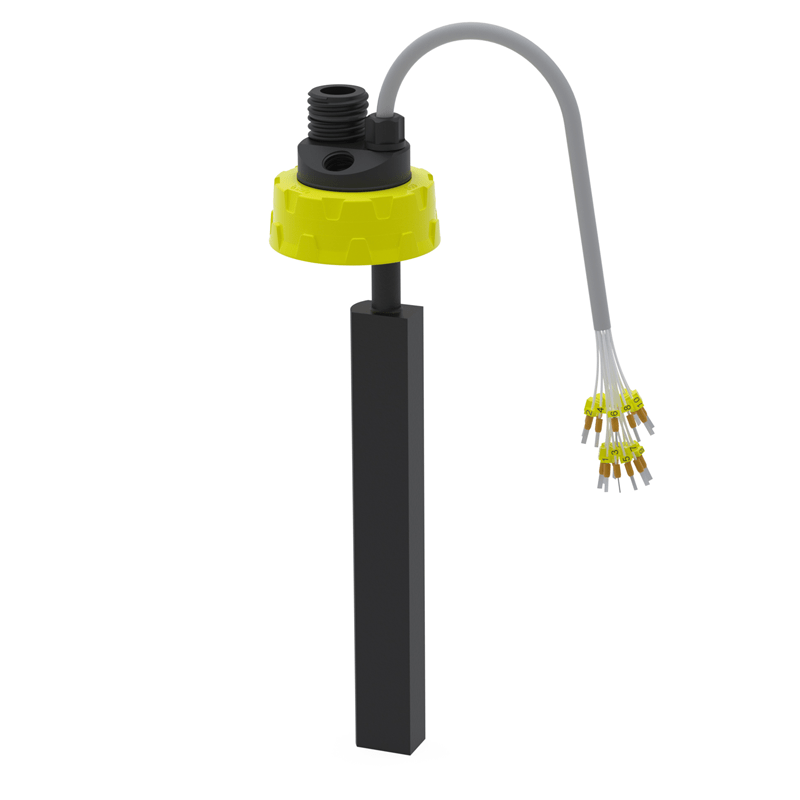

System Waste Caps TLC provide a secure way to dispose of solvent waste in HPLC systems. Made from static dissipative PE-EX, they ensure reliable operation. Each cap includes a PP screw cap with a free-moving insert of conductible PE-EX. The GL25 connector attaches to Waste Tubes, while the GL14 connector secures a Venting Hose or Exhaust Filter.
Designed for precise waste collection, the PTFE insert offers multiple threads (UNF 1/4”, NPT 1/8”) for direct connections using fittings or hose connectors. Additionally, the GL14 connector supports a separate exhaust filter, which absorbs solvent vapors to minimize emissions. Compatible with HPLC, UPLC, and AKTA systems, these caps improve both safety and efficiency in your laboratory setup.
Additional information
| Chemical resistance: | ++ very good |
|---|---|
| Temperature resistance: | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material | PTFE, PE-EX |
| For Canister thread | S60 |
| Hose connector | 1 x GL25 |
| Connector for aeration | 1 x GL14 |
| Connection of signal cable option | Plug, Braid for isolated |
