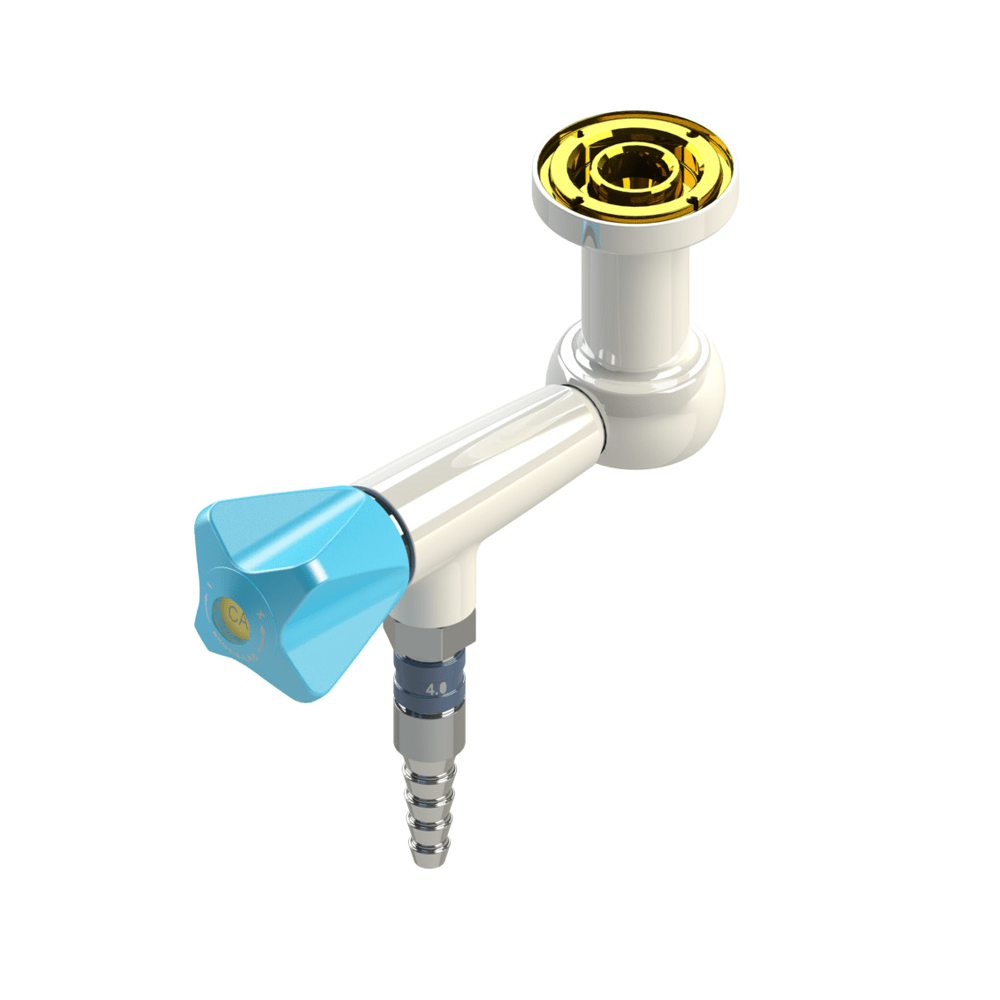

Suspended Fittings with 90° Valves for non-burning 4.0 gases | BROEN
€195.50 – €760.50 ex. VAT
Description
BROEN’s Suspended Fittings with 90° Valves for non-burning 4.0 gases offer safe and efficient gas handling in laboratory settings. The UniFlex™ Premium line ensures high quality and durability. Additionally, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV fading, and heat, maintaining long-term reliability.
Moreover, these fittings feature a fixed metal nozzle or a quick-release coupling, providing secure and adaptable connections. The 90° valves allow precise control and smooth gas flow, making them ideal for applications where purity is essential.
Most importantly, the fittings include a 700mm PTFE hose with an OD10mm inlet connection, ensuring compatibility with gases such as oxygen, compressed air, nitrogen, carbon dioxide, argon, helium, and dinitrogen monoxide. This flexibility supports various laboratory configurations while optimizing performance.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 072 1021-52B – 2530 253 1027-52B |
| Media type | Compressed Air, Oxygen, Nitrogen, Carbon Dioxide, Argon, Helium, Dinitrogen monoxide |
| Mounting | Suspended |
| Handle | Polypropylene with media indication according to EN13792 |
| Head nozzle | Metal, fixed (can be unscrewed with Allen key, thread: male G3/8) |
| Headwork | Needle |
| Opening/closing function | 3 x 360° |
| Max. working pressure | 16 bar / 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metal with media contact | Brass |
| Plastics with media contact | PVDF, PTFE (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Number of Vavles | 1-valve, 2-valve 90°, 2-valve 180°, 4-valve |
| Nozzle type | Fixed nozzle, With quick release coupling (hexagon coded) |
