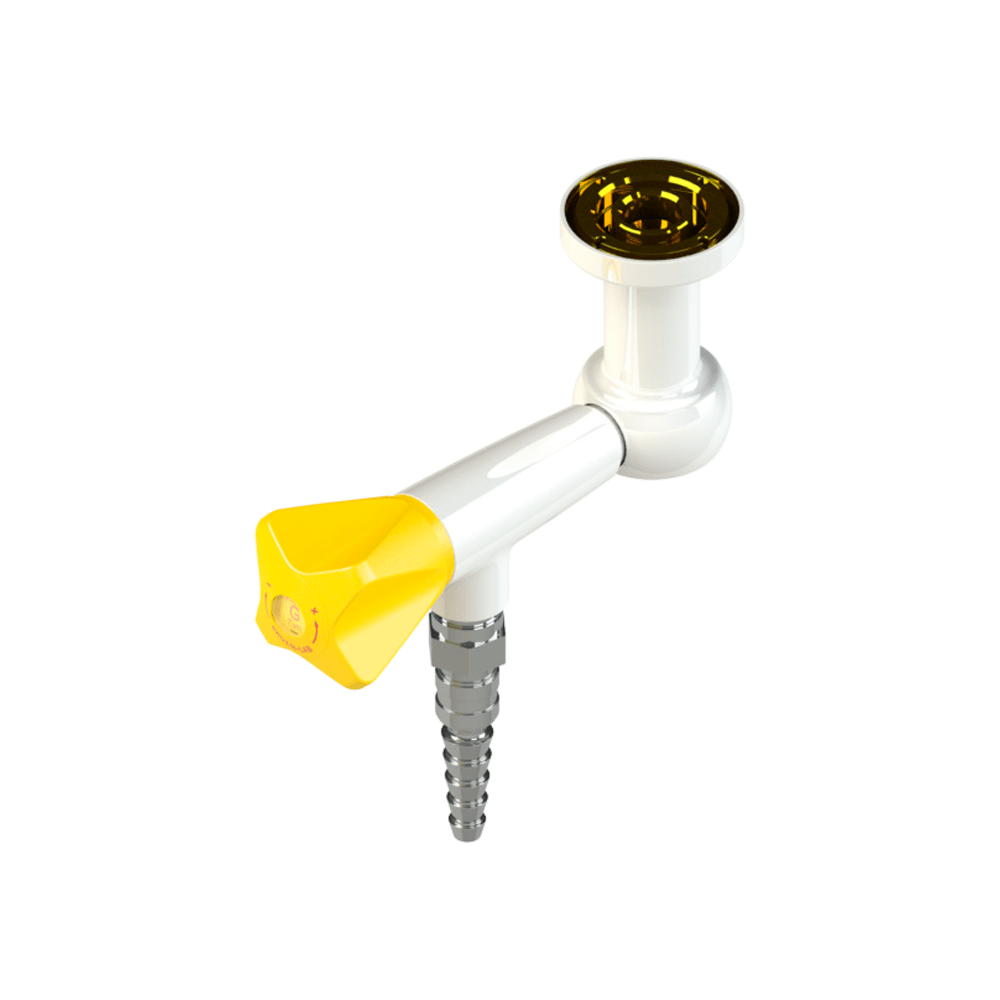

Suspended Fittings with 90° valves for burning gases | BROEN
€129.75 – €544.50 ex. VAT
Description
The Suspended Fittings with 90° valves for burning gases by BROEN ensure efficiency and safety in laboratory environments. To start, their 90° valve design allows precise control and smooth operation, making gas flow adjustments effortless. Additionally, the quick-release coupling enables fast and secure connections, ensuring adaptability for various applications.
Moreover, these fittings prioritize durability. Constructed from high-quality materials, they provide long-lasting performance, even under demanding conditions. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV light, and heat, ensuring reliability in laboratory settings.
Most importantly, these fittings meet rigorous industry standards. With a maximum working pressure of 7 bar and temperature limits from 5°C to 60°C, they deliver dependable functionality. They also come with a 700mm SS flexible pipe featuring an OD12mm inlet connection. Additionally, configurations can be customized to accommodate natural gas or liquefied petroleum, making them highly versatile for different laboratory setups.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 076 1031-52B, 2530 061 1031-52B, 2530 071 1031-52B, 2530 227 1031-52B, 2530 076 1032-52B, 2530 061 1032-52B, 2530 071 1032-52B, 2530 227 1032-52B, 2530 228 1031-52B, 2530 229 1031-52B, 2530 230 1031-52B, 2530 231 1031-52B, 2530 228 1032-52B, 2530 229 1032-52B, 2530 230 1032-52B, 2530 231 1032-52B |
| Media type | Natural gas, Liquefied petroleum gas |
| Mounting | Suspended |
| Handle | Polypropylene with media indication according to EN13792 |
| Hose nozzle | Metal fixed |
| Headwork | Ceramic press/turn |
| Opening/Closing function | 90° |
| Max. working pressure | 7 bar / 102 psi |
| Allowable trest pressure after installation | 10 bar without function of the valve |
| Metals with media contact | Brass, NBR (rubber hose) |
| Sealing with media contact | Nitrile (NBR) |
| Lubricant with media contact | Mineral oil based |
| Ceramics with media contact | AI2O3 96% |
| Number of valves | 1-valve, 2-valve 90°, 2-valve 180°, 4-valve |
| Nozzle Type | Fixed nozzle, With quick release coupling |
