Laboratory Taps

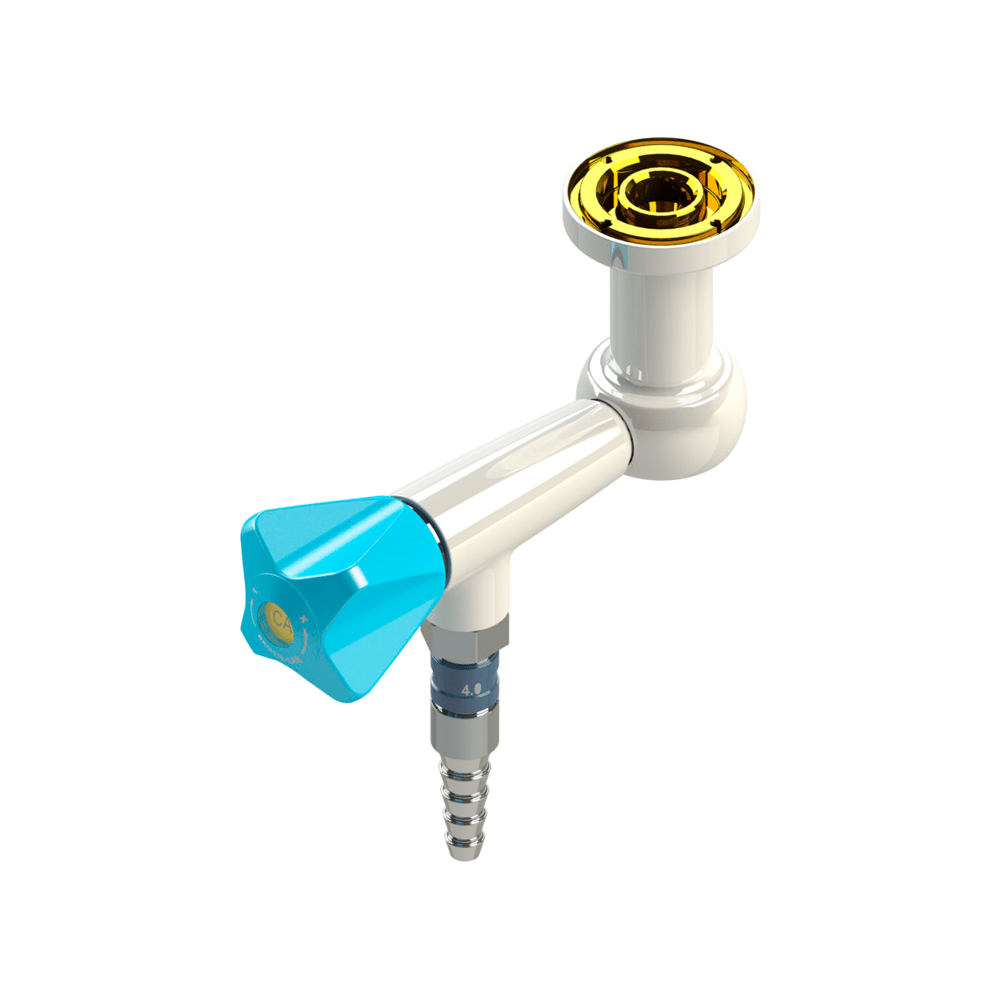

Suspended Fittings with 90° valves for non-burning 2.0 gases | BROEN

€117.75 – €510.00 ex. VAT

Categories: , Tags: , , , , , , , SKU: N/A

Description

BROEN’s Suspended Fittings with 90° valves for non-burning 2.0 gases provide safe and efficient gas control in laboratory environments. The 90° valve design ensures precise adjustments and smooth operation, making it easy to regulate flow. Additionally, the quick-release coupling enables fast and secure connections, enhancing adaptability across different applications.

Moreover, durability remains a key feature. Constructed with high-quality materials, these fittings deliver reliable and long-lasting performance. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV light, and heat, ensuring reliability in demanding conditions.

Most importantly, these fittings meet rigorous laboratory standards. With a maximum working pressure of 7 bar and temperature limits ranging from 5°C to 60°C, they provide dependable functionality for research and experimental setups.

Additional information

Weight1 kg
Model

2530 075 1021-52B – 2530 212 1028-52B

Media type

Compressed air, Nitrogen, Carbon dioxide, Argon, Helium, Low vacuum (1000 to 1 mbar)

Mounting

Suspended

Handle

Polypropylene, media indication according to EN13792

Hose nozzle

Polypropylene, fixed (can be unscrewed by hand, thread: male G3/8)

Headwork 2.0 gases

Needle

Headwork vacuum

High flow

Opening /closing function 2.0 gases

3 x 360°

Opening /closing function vacuum

1.5 x 360°

Max working pressure 2.0 gases

16 bar / 232 psi

Working pressure vacuum

-1 bar to 16 bar / -14.5 psi to 232 psi

Allowable test pressure after installation

1.5 x max working pressure without function of the valve

Metals with media contact

Brass

Plastics with media contact

PVDF, PP, SPX (hose)

Sealing with media contact

FKM

Lubricant with media contact

Perfluoropolyether based

View Specification

Download
