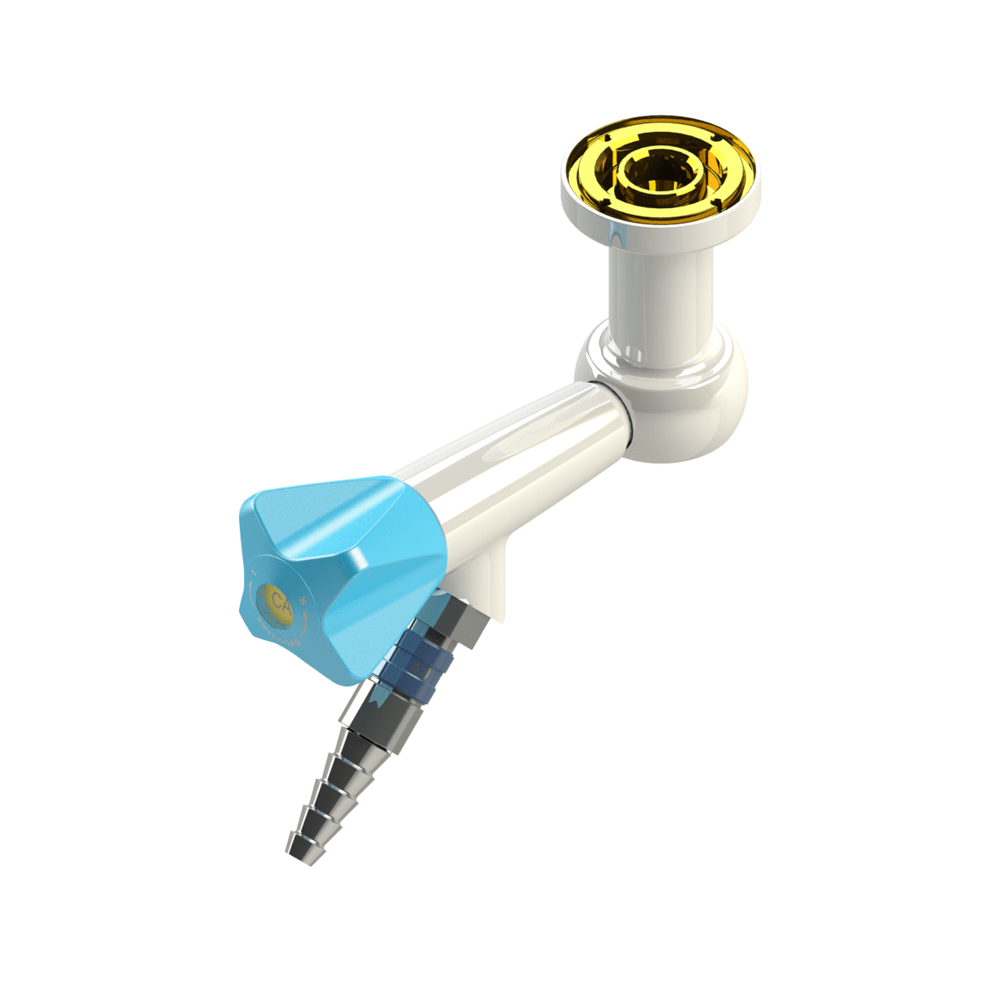

Suspended Fittings with 45° Valves for non-burning 4.0 gases | BROEN
€198.75 – €773.00 ex. VAT
Description
BROEN-LAB UniFlex™ PREMIUM Suspended Fittings deliver optimal performance in laboratory settings, specifically designed for Oxygen service. They handle non-burning 4.0 gases with 99.99% purity, ensuring impurities are completely removed for critical applications.
The suspended design features 45° valves, allowing users to control flow precisely while maintaining effortless operation. To enhance durability, BROEN-LAB POLYCOAT powder coating strengthens resistance against chemicals, UV fading, and heat.
Furthermore, the UniFlex™ PREMIUM line offers versatile installation options, including bench, wall, and suspended fittings. Users can select either a fixed metal nozzle or a quick-release coupling, ensuring secure and efficient connections.
Designed for flexibility, this system supports multiple connection methods—including hoses, Cu, PEX, and stainless steel pipes—without requiring valve replacements. As a result, installation becomes more streamlined, reducing total installed costs (TIC) and boosting efficiency for both installers and end-users.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 242 1021-52B – 2530 248 1027-52B |
| Media type | Compressed Air, Oxygen, Nitrogen, Carbon Dioxide, Argon, Helium, Dinitrogen monoxide |
| Mounting | Suspended |
| Handle | Polypropylene with media indication according to EN13792 |
| Head nozzle | Metal, fixed (can be unscrewed with Allen key, thread: male G3/8) |
| Headwork | Needle |
| Opening/closing function | 3 x 360° |
| Max. working pressure | 16 bar / 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metal with media contact | Brass |
| Plastics with media contact | PVDF, PTFE (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Number of Vavles | 1-valve, 2-valve 90°, 2-valve 180°, 4-valve |
| Nozzle type | Fixed nozzle, With quick release coupling (hexagon coded) |
