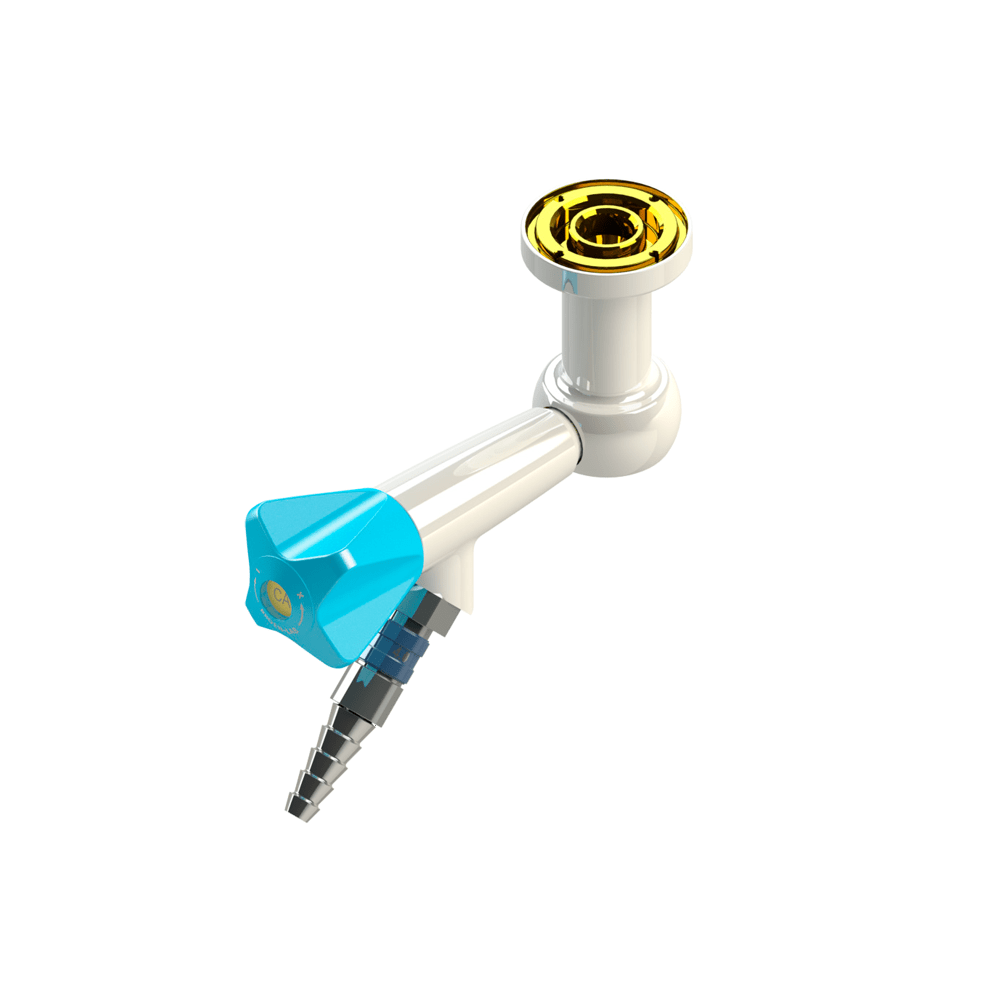

Suspended Fittings with 45° valves for non-burning 2.0 gases | BROEN
€134.00 – €572.50 ex. VAT
Description
BROEN-LAB UniFlex™ Suspended Fittings for non-burning 2.0 gases deliver precise control and efficiency in laboratory environments. Each fitting features a needle headwork, ensuring fine regulation of media flow. With just three 360° handle rotations, the valve fully opens, allowing smooth and effortless adjustments.
Additionally, all UniFlex™ vacuum fittings include a high-flow headwork. When high flow is required for other media or a valve needs to function as a shut-off, a high-flow headwork for 2.0 non-burning gases provides a reliable solution. This option enhances versatility while maintaining consistent performance.
Moreover, for applications where media flow approaches zero and microscopic regulation is essential, a micro-flow headwork enables exceptionally fine control. As a result, these fittings offer remarkable flexibility, ensuring adaptability for specialized laboratory experiments.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 189 1021-52B – 2530 202 1028-52B |
| Media type | Compressed air, Nitrogen, Carbon dioxide, Argon, Helium, Low vacuum (1000 to 1 mbar) |
| Mounting | Suspended |
| Handle | Polypropylene, media indication according to EN13792 |
| Hose nozzle | Polypropylene, fixed (can be unscrewed by hand, thread: male G3/8) |
| Headwork 2.0 gases | Needle |
| Headwork vacuum | High flow |
| Opening /closing function 2.0 gases | 3 x 360° |
| Opening /closing function vacuum | 1.5 x 360° |
| Max working pressure 2.0 gases | 16 bar / 232 psi |
| Working pressure vacuum | -1 bar to 16 bar / -14.5 psi to 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metals with media contact | Brass |
| Plastics with media contact | PVDF, PP, SPX (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
