Suspended 2 Valve Fitting | BROEN
€166.50 ex. VAT
Description

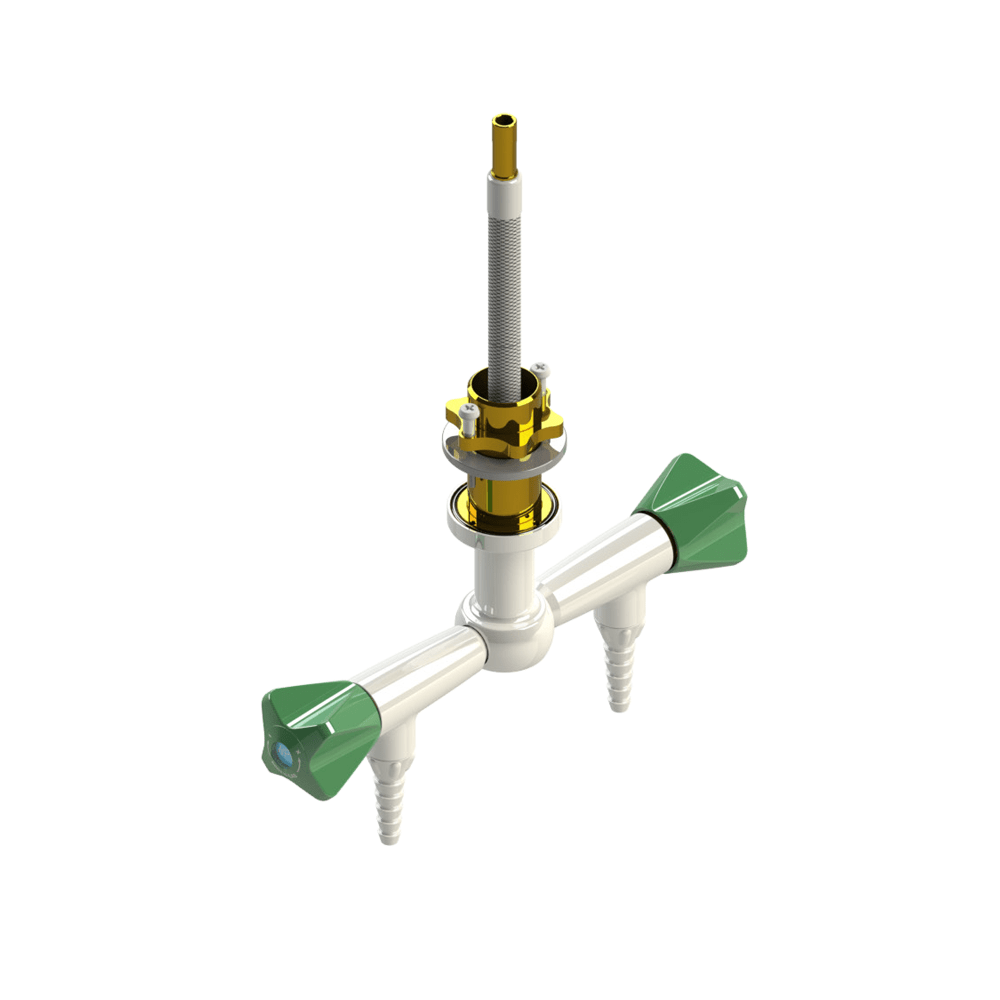

BROEN’s Suspended 2 Valve Fitting enhances laboratory efficiency with durable construction and precise gas flow control. Crafted from high-quality materials, it features BROEN-LAB POLYCOAT powder coating, which strengthens resistance against chemicals, UV fading, and heat.
Designed for non-burning gases and vacuum applications, the fitting includes two valves that allow precise adjustments and smooth operation. Additionally, its robust construction ensures long-term reliability in demanding environments.
To simplify installation, the fitting comes with an easy-to-mount anti-rotational mounting kit, guaranteeing a secure and hassle-free setup.
Additional information
| Weight | 2.5 kg |
|---|---|
| Model | 2530 064 1001-52B, 2530 064 1007-52B |
| Media Type | Potable water, Non-potable water |
| Mounting | Suspended |
| Valve type | 2-valve 180° |
| Handle | Polypropylene, with media indication according to EN13792 |
| Hose Nozzle | Fixed olypropylene (can be unscrewed by hand, thread: male G3/8) |
| Headwork | Rubber (wrist action lever: ceramic) |
| Opening / Closing Function | 2 x 360° (wrist action lever: 90°) |
| Temperature Range | 0-65°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 2.5 |
| Metals with media contact | Brass |
| Plastics with media contact | PP, SPX (hose) |
| Sealing with media contact | EPDM |
| Lubricants with media contact | Silicone based |
| Ceramics with media contact | Al2O3 96% (wrist action lever only) |
