Starter Set Multiport IV for Waste Pipes | b.safe
€235.94 ex. VAT
Description

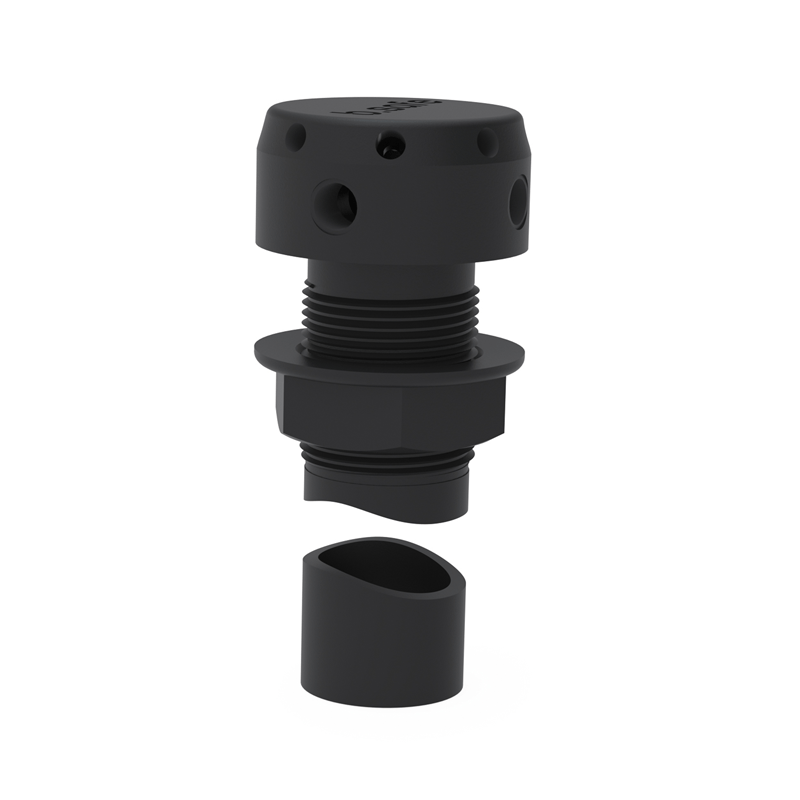

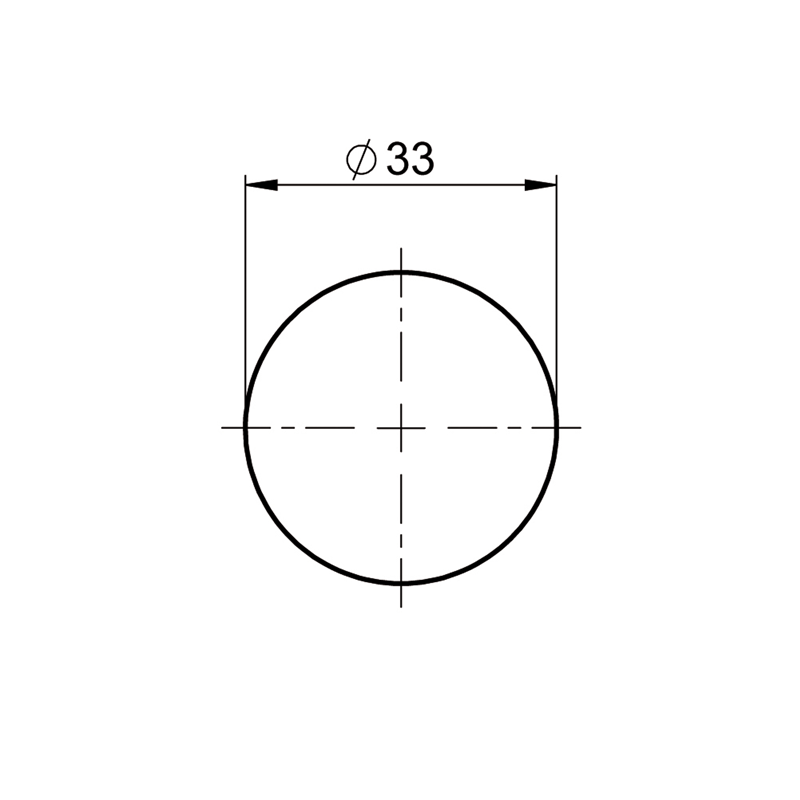

The Starter Set Multiport IV by ensures safe and reliable waste pipe management. Crafted from static dissipative PE-EX, it provides effective protection against electrostatic discharge while maintaining durability. Designed for tiles with a thickness of 10 to 35 mm and a bore diameter of 35 mm, this set offers versatility for various installations. Additionally, its easy fixing mechanism, secured with a counter nut, ensures a stable and secure fit.
The set’s low installation height results from its inclined side connections, creating additional sloping. This thoughtful design allows tubing connections without bending, improving functionality. The upper side features 8 capillary connections (female thread UNF 1/4”) with fittings for capillaries of O.D. 1.6/2.2/3.2 mm. Moreover, it includes 4 tube connections (female thread NPT 1/8”) with hose connectors for tubing with I.D. 6.5-8 mm.
Additionally, the bottom connection has an O.D. of 32 mm for direct integration with rigid pipe connections, which can be shortened if needed. The Starter Set Multiport IV is fully compatible with HPLC, UPLC, and ÄKTA systems, ensuring extensive usability in lab environments.
Additional information
| Chemical resistance | ++ very good |
|---|---|
| Temperature resistance | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material | PE-EX |

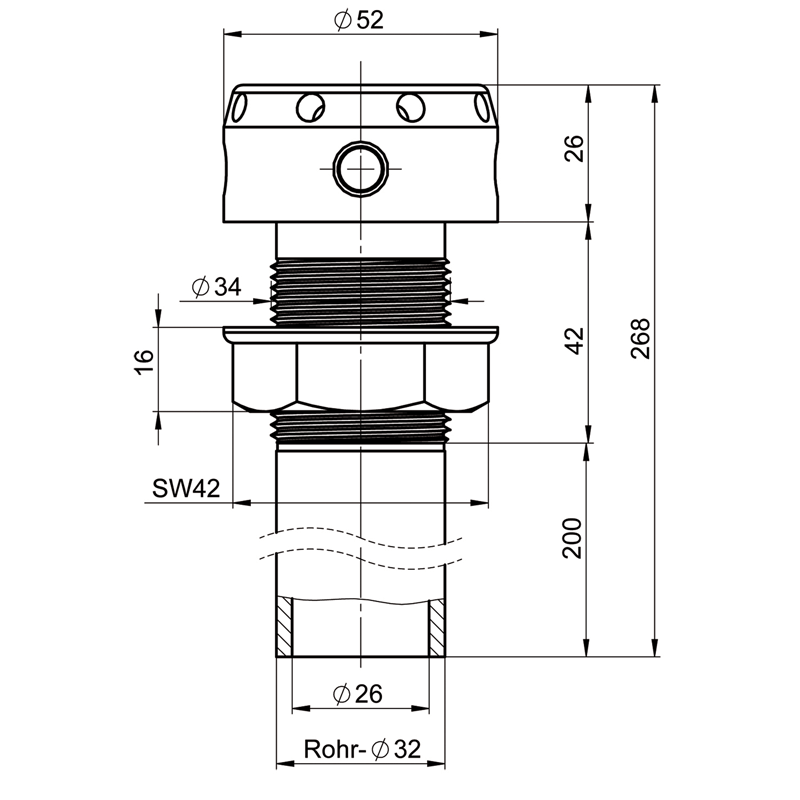

| Total length (mm) | 268 |
| Description | Starter Set Multiport IV für Waste Pipes |
| Connection (bottom) | O.D. 32mm |
| No. of hose connections | 4x NPT 1/8" |
