Starter Set Multiport II for Waste Pipes | b.safe
€207.01 ex. VAT
Description

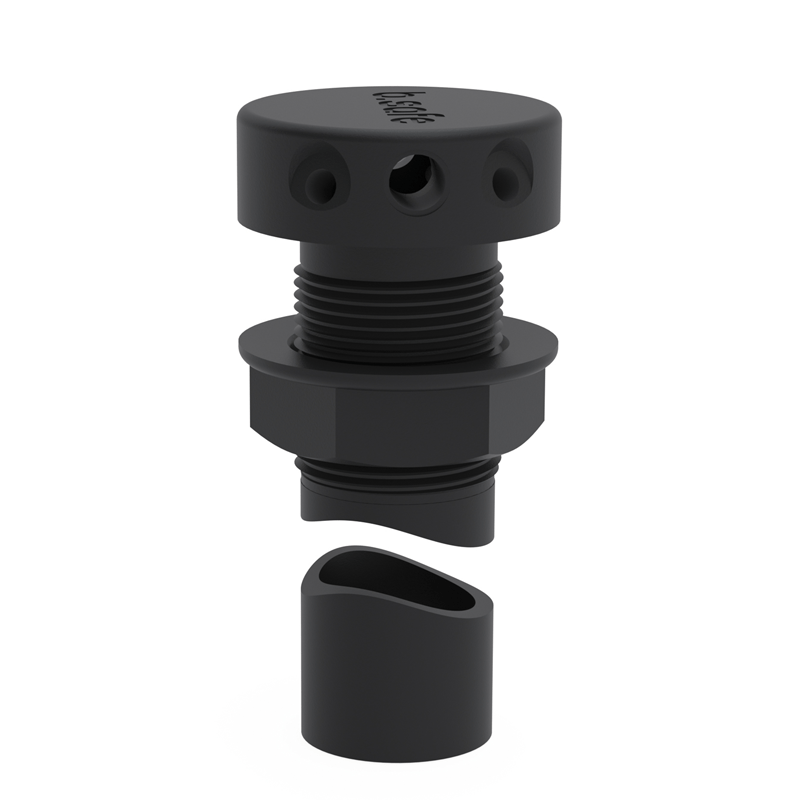

The Starter Set Multiport II by ensures safe and efficient waste management in laboratories. Made from static dissipative PE-EX, it protects against electrostatic discharge while maintaining durability. Designed for tiles with a thickness of 10 to 35 mm and a bore diameter of 35 mm, it offers versatile installation. Its easy fixing mechanism, secured with a counter nut, ensures a stable fit.

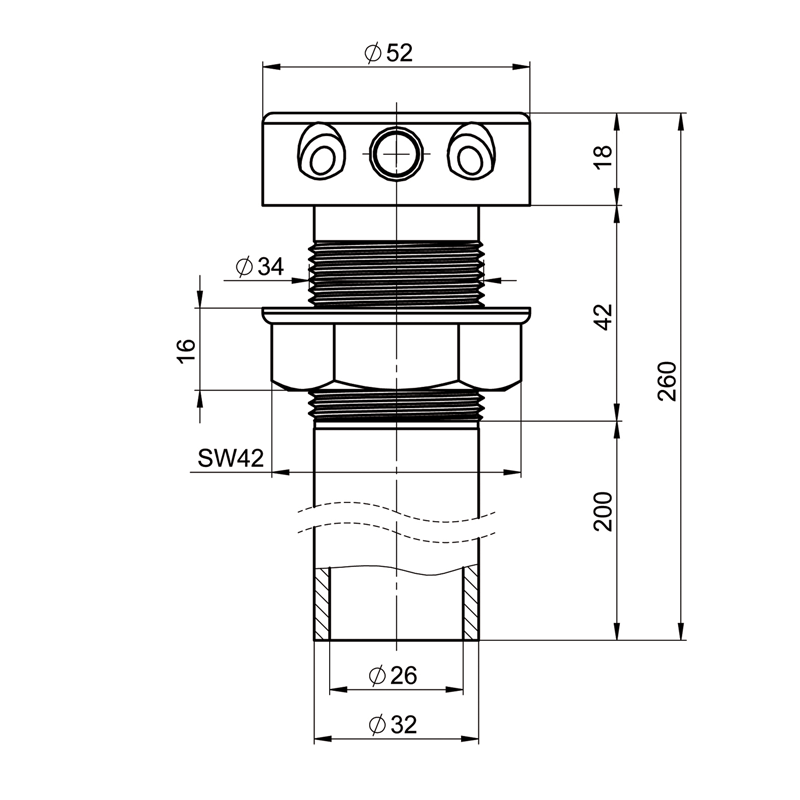

Additionally, its low installation height results from inclined side connections, allowing tubing attachment without bending. The upper side features 4 capillary connections (female thread UNF 1/4”) with fittings for capillaries of O.D. 1.6/2.2/3.2 mm. Furthermore, it includes 2 tube connections (female thread NPT 1/8”) with hose connectors for tubing with I.D. 6.5-8 mm.
The bottom connection has an O.D. of 32 mm for direct integration with rigid pipe connections, which users can shorten if necessary. Moreover, this set supports up to 2 HPLC systems, making it ideal for laboratory hoods or workstations.
Additional information
| Chemical resistance | ++ very good |
|---|---|
| Temperature resistance | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material | PE-EX |
| Total length (mm) | 260 |
| Description | Starter Set Multiport II for Waste Pipes |
| Number of capillary connectors | 4x UNF 1/4" |
| Connection (bottom) | O.D. 32 mm |
| No. of hose connections | 2x NPT 1/8" |
