Description

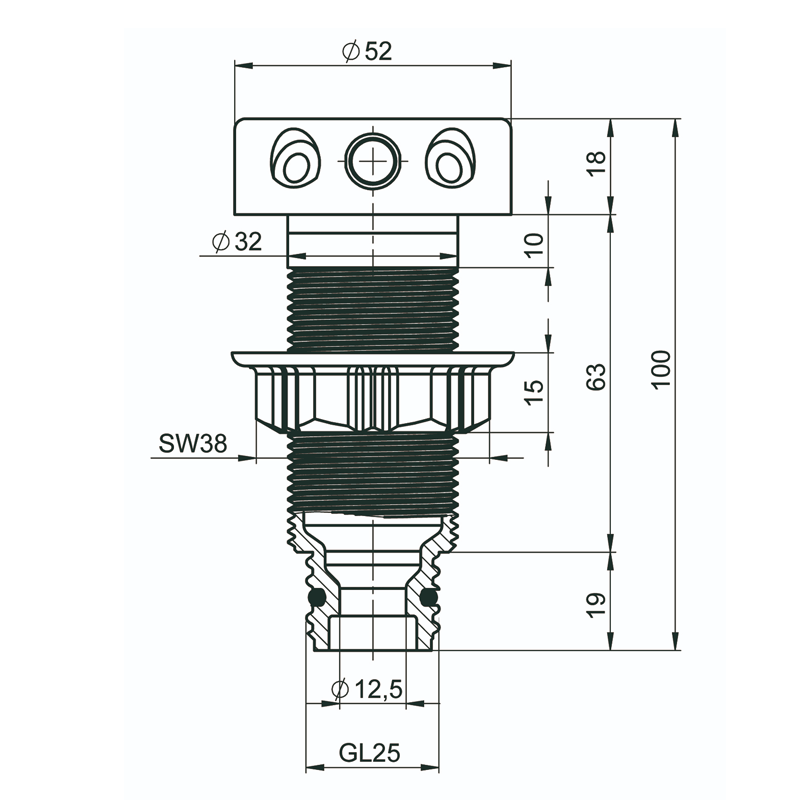

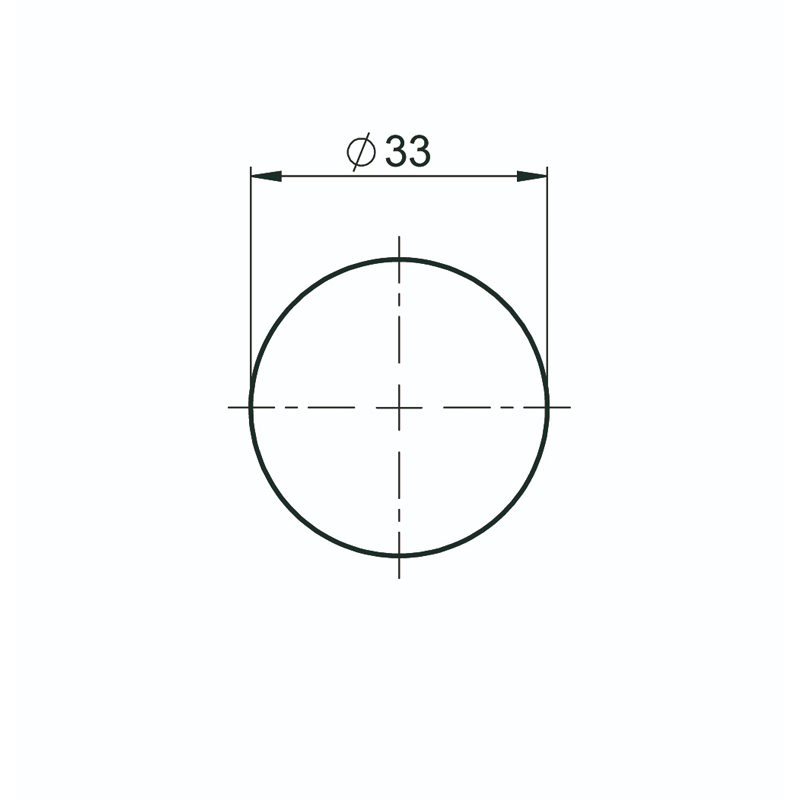

The Starter Set Multiport II for waste pipes is made of static dissipative PE-EX, ensuring safety and reliability. It is suitable for boards with a thickness of 10 to 35 mm, featuring an easy fixing mechanism with a counter nut. The low installation height is achieved through side connections, with inclined threads providing additional sloping for tubings without bending.

The upper side includes 2×2 capillary connections (thread UNF 1/4”) with b.safe fittings for capillaries with O.D. 1.6/2.2/3.2 mm, and 2×1 hose connection (female thread NPT 1/8”) with b.safe hose connectors for tubing with I.D. 6.5-8 mm. The bottom connection has a male thread GL25 for direct connection with flexible b.safe waste tubes. This set is compatible with HPLC, UPLC, AKTA systems, ensuring comprehensive utility.

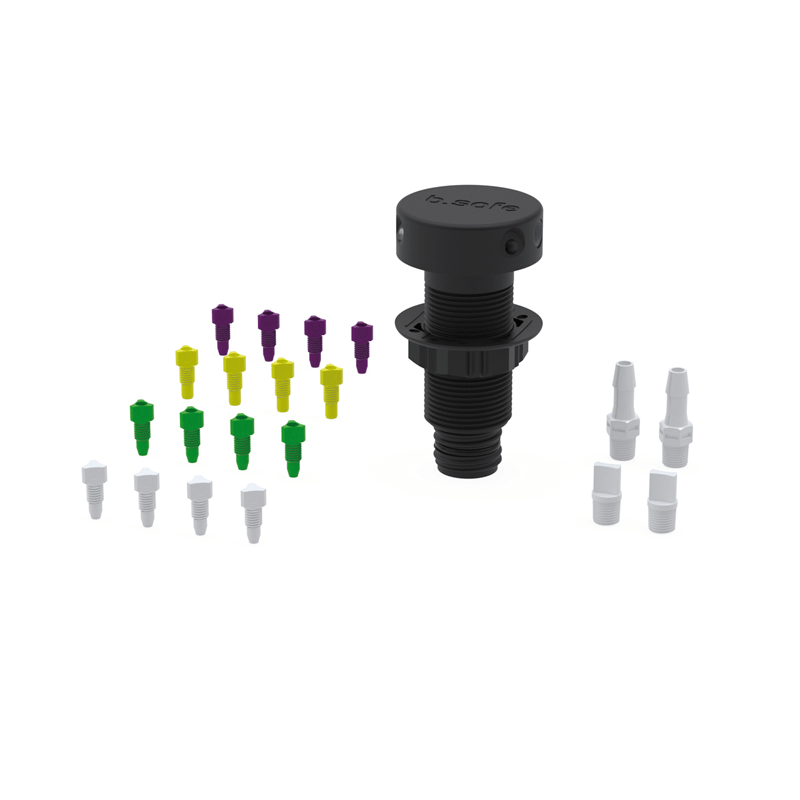

The scope of delivery includes:

• 1x b.safe Desktop Mount Multiport II
• 12x b.safe Fittings: 4x Ø 1.6 mm (green), 4x Ø 2.2 mm (purple), 4x Ø 3.2 mm (yellow)
• 4x b.safe Blind Fittings for capillary connection (UNF 1/4”)
• 2x b.safe Hose Connectors for I.D. 6.5-8 mm
• 2x b.safe Blind Fittings for hose connection (NPT 1/8”)
