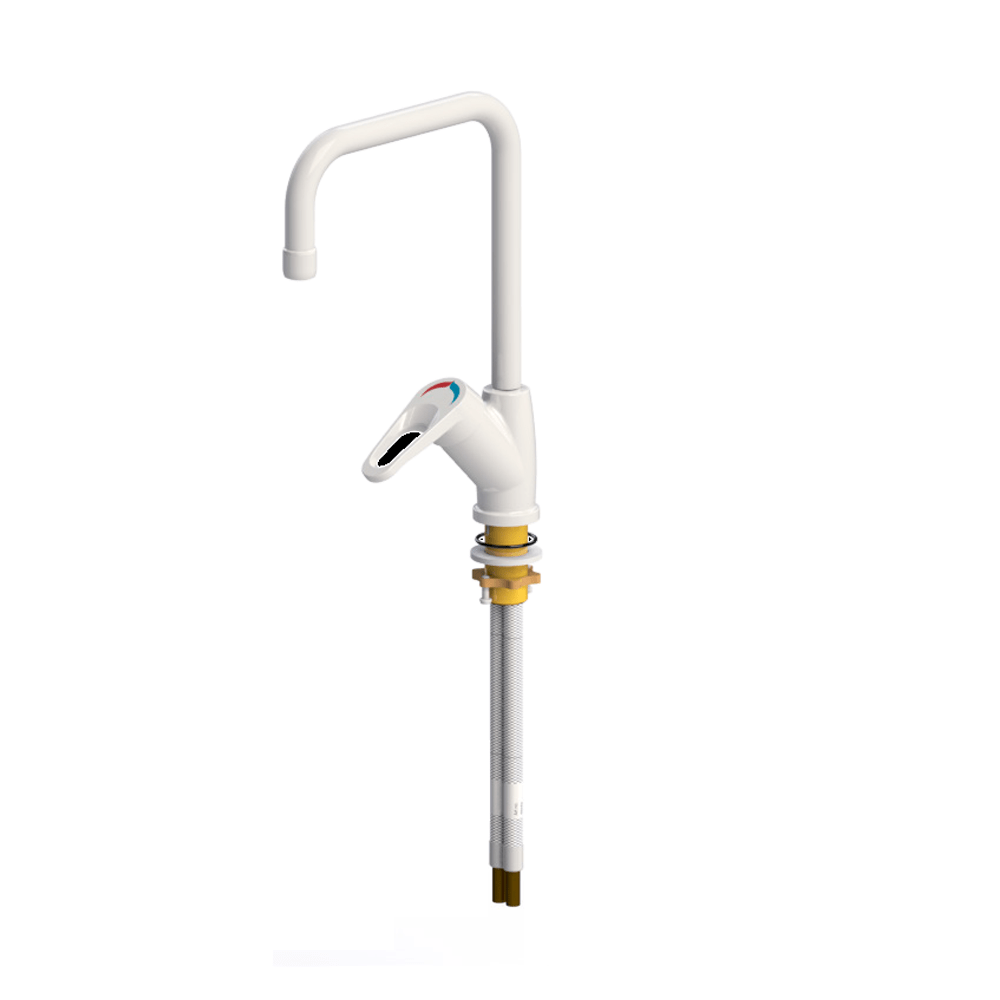

SINGLE HANDLE MIXER | BROEN
€306.25 – €377.50 ex. VAT
Description
The Single Handle Mixer | BROEN-LAB UniFlex™ fittings meet the demands of modern educational laboratories. BROEN-LAB applies POLYCOAT powder coating to these high-quality materials, ensuring superior resistance to chemicals, UV fading, and heat.
Additionally, most BROEN-LAB UniFlex™ water fittings include a fixed polypropylene hose nozzle and handle, offering convenient operation. Users can also select fittings with an integrated check valve, which prevents backflow and enhances safety and performance.
Furthermore, each fitting comes with an easy-to-mount anti-rotational kit, making installation simple while securing a reliable fit.
Additional information
| Weight | 2.4 kg |
|---|---|
| Model | 2535 038 1035-52B, 2535 039 1035-52B, 2535 040 1035-52B, 2535 041 1035-52B |
| Mounting | Bench |
| Spout Standoff | 150mm, 200mm, 250mm, 300mm |
| Handle | Metal, BROEN-LAB POLYCOAT powder coated |
| Spout | Swivel action |
| Hose nozzle | Aerator |
| Cartridge | Ceramic (temperature and flow regulation type) |
| Opening/closing function | 25°, mixing function: ±45° |
| Temperature range | 0°C – 90°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 2.4 |
| Metals with media contact | Brass |
| Plastics with media contact | PP, SPX (hose) |
| Sealing with media contact | EPDM |
| Lubricants with media contact | Silicone based |
| Ceramics with media contact | Al2O3 96% (wrist action lever only) |
