Mini-Display TLC | b.safe
€385.86 ex. VAT
Description

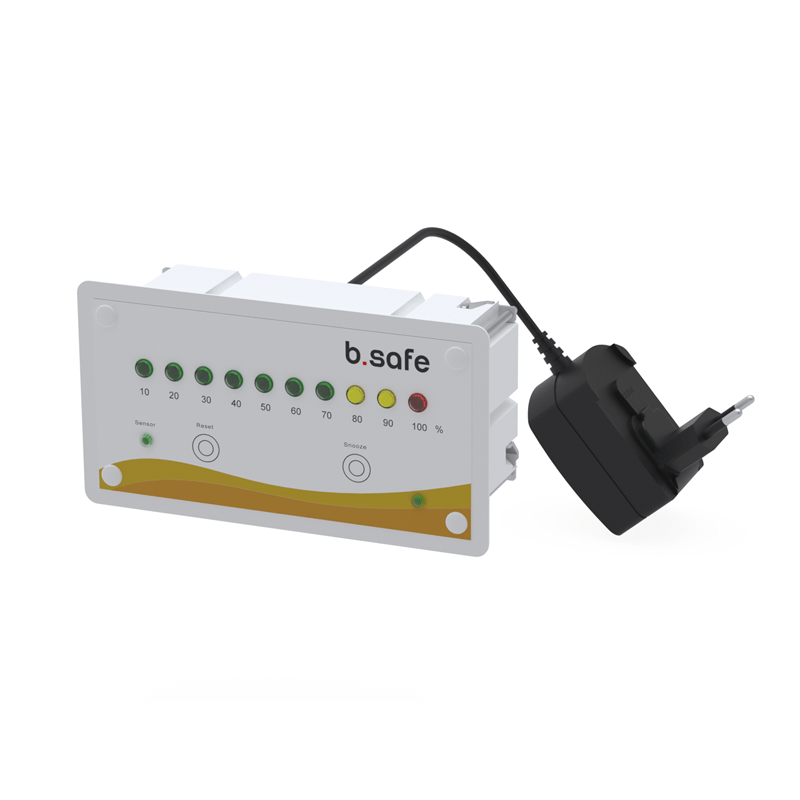

The Mini-Display TLC helps users monitor solvent waste levels in laboratories in real time. Additionally, its halogen-free plastic case ensures durability while maintaining safety. Moreover, the front panel features touch buttons and LED indicators, allowing users to track operation and fill levels via a separately available System Waste Cap TLC. Furthermore, the display updates continuously, showing the fill level in increments of 10% of the nominal volume.
To enhance safety, the system flashes a yellow LED at 80% and 90% capacity to provide an optical pre-alert. When the canister reaches full capacity (about 100%), a red LED starts flashing while an acoustic alert activates. Meanwhile, users can interrupt the alarm for approximately five minutes, giving them time for container replacement.
If a power interruption occurs, the system retains fill level reports at 90% and 100%. When restarted, it displays saved values and triggers alerts when necessary. Additionally, the Mini-Display TLC includes a power supply (Input: AC 100-240 V/50-60 Hz, 0.5 A; Output: 24 V DC, 0.5 A) and offers plug adapters for EU, Australia, USA, Japan, and UK.
Additional information

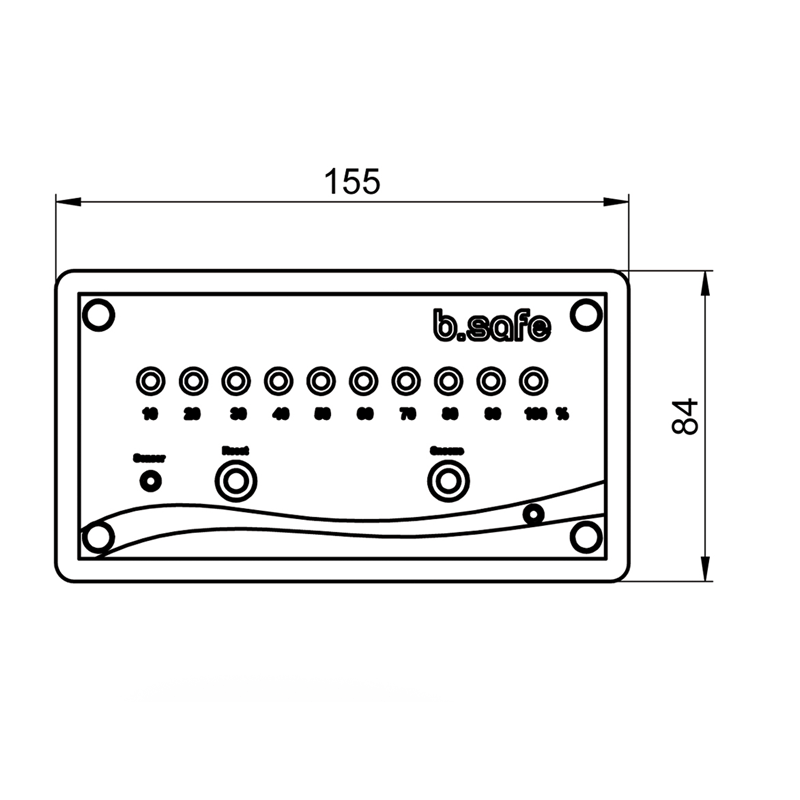

| Dimensions [L x W x H mm] | 155 x 84 x 65 |
|---|---|
| No. of containers to be monitored | 1 |
