Elbow Stopcock | b.safe
€183.49 ex. VAT
Description

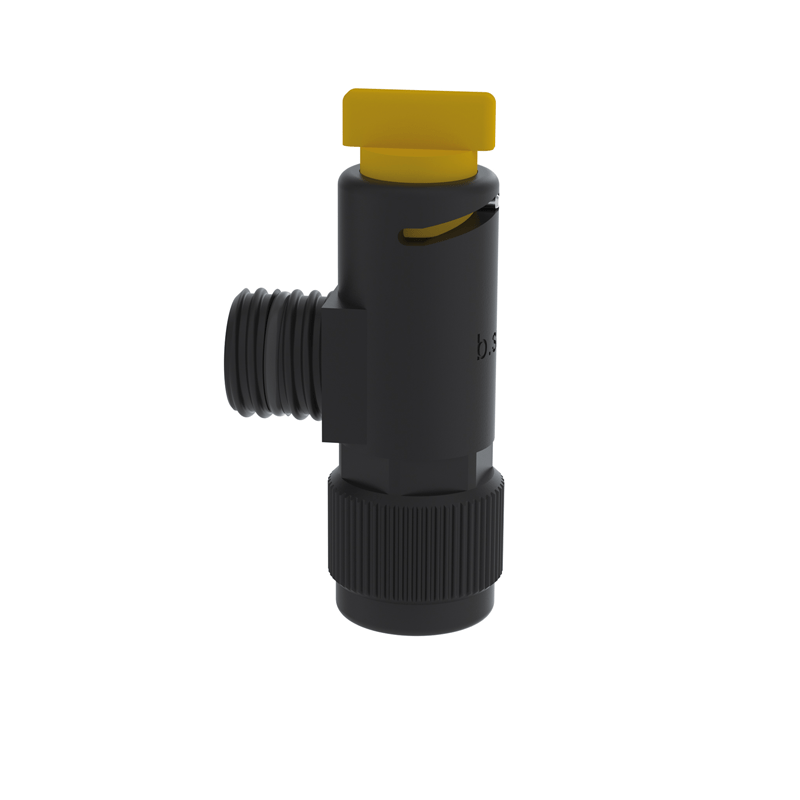

The Elbow Stopcock by provides a secure and efficient solution for fluid control in laboratory environments. Made from static dissipative PE-EX, it ensures safe handling while reducing the risk of static buildup. Its 90° elbow fitting features a male GL25 thread and a permanently mounted screw cap made of PPS with a female GL25 thread.
Additionally, the integrated stopcock allows effortless interruption of flow when exchanging or emptying canisters. The locking function at end positions ensures clear definition between open and closed states, improving precision and ease of use.
Furthermore, this stopcock is compatible with HPLC, UPLC, AKTA, and static dissipative applications, making it a versatile choice for controlled fluid management. With its innovative design, it enhances both safety and efficiency in laboratory setups.
Additional information
| Chemical resistance | ++ very good |
|---|---|
| Temperature resistance | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material: | PE-EX |
| Bore diamater (mm) | 10 |

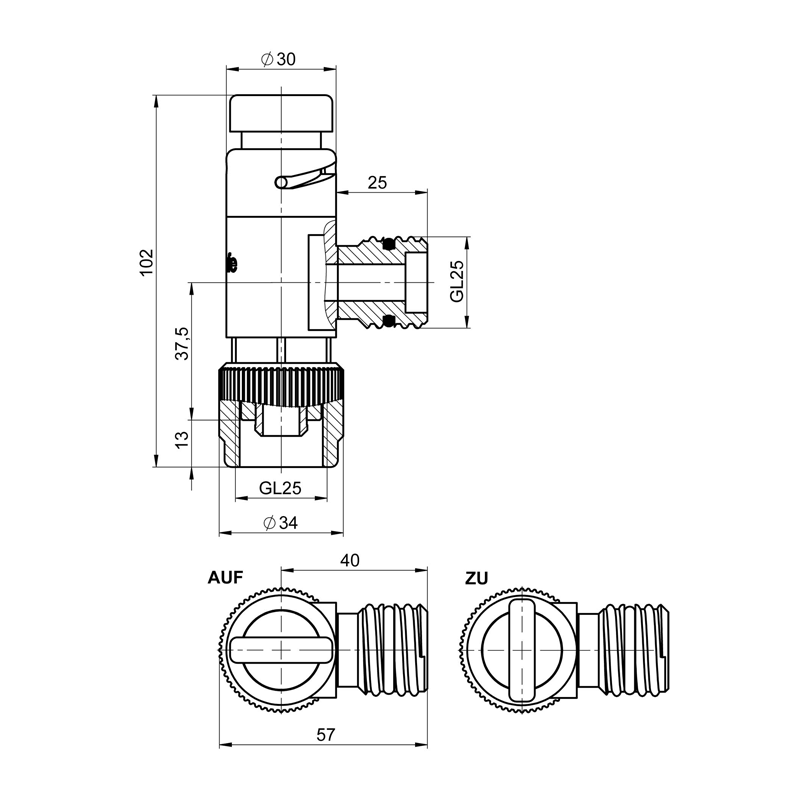

| Outer diameter (mm) | 34 x 57 x 102 |
| Female thread | GL25 |
| Male thread | GL25 |
| Packing unit (pcs.) | 1 |
