Elbow Connecting Tube | b.safe
€79.39 – €87.58 ex. VAT
Description

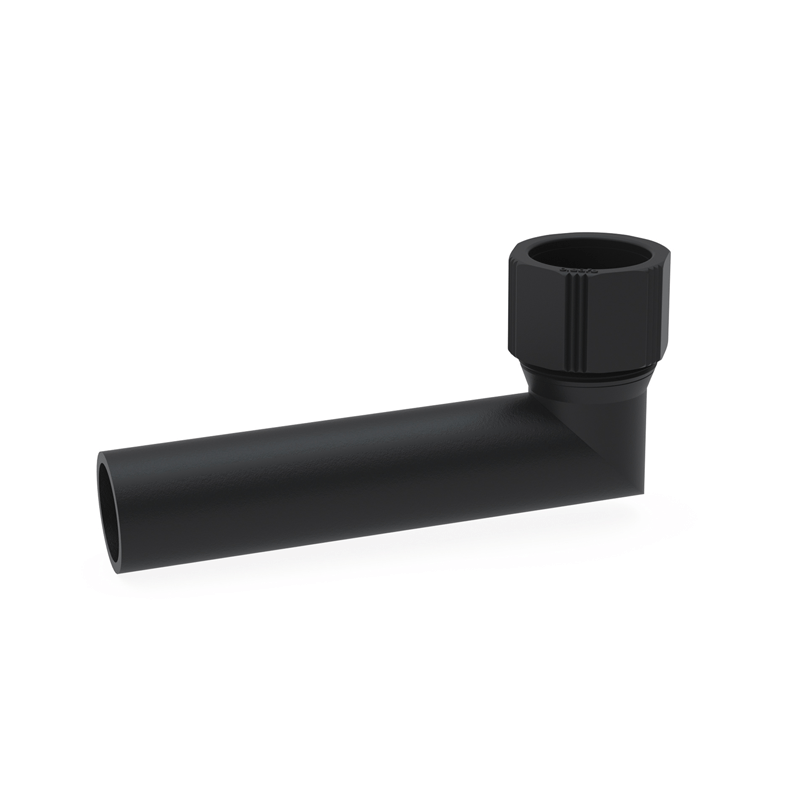

The Elbow Connecting Tube provides secure and efficient connections for laboratory and industrial waste management. Made from static dissipative PE-EX, it enhances safety while maintaining durability.
Its 90° angle makes it ideal for directing waste pipes in tight spaces, ensuring optimal system integration. Additionally, it features:
- Clamp connections for inserting and clamping Waste Pipes (O.D. 32 mm)
- An end piece with an outer diameter of 32 mm, allowing seamless transitions

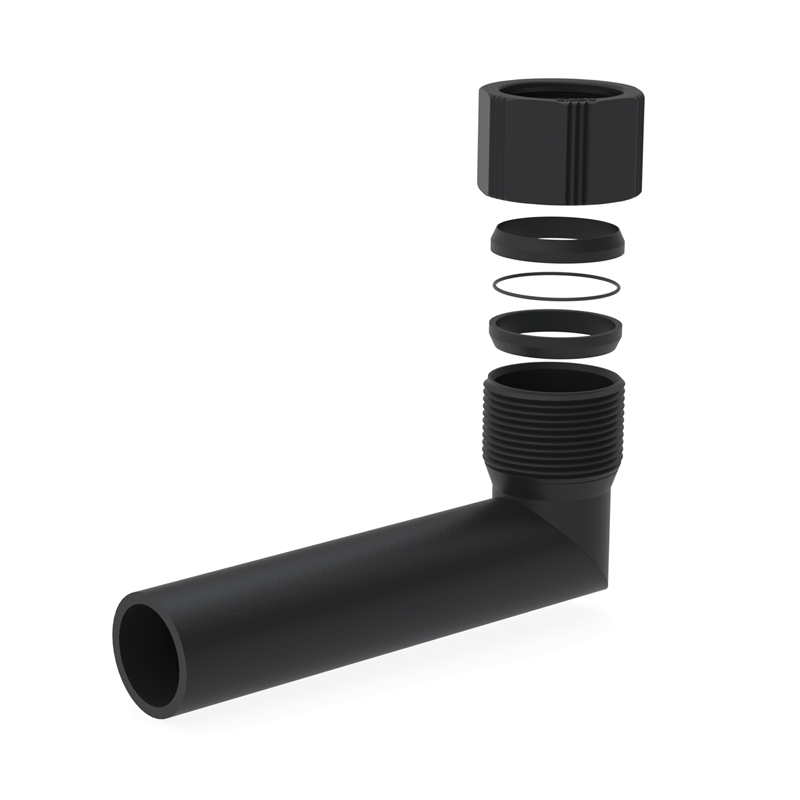

Moreover, each clamp connection includes:
- A lock nut in PE-EX, ensuring stability
- Two conical sealing rings in PTFE-EX, providing a tight seal
- An O-ring in EPDM, preventing leaks
Furthermore, this elbow tube is available in two different usable lengths, offering flexibility to suit various setups. It is fully compatible with HPLC, UPLC, ÄKTA, and PE-EX systems, ensuring efficient and reliable waste liquid management.
Additional information
| Chemical resistance: | ++ very good |
|---|---|
| Temperature resistance: | from -50°C to +80°C |
| Conductivity: | 1.000 kOhm |
| Material: | PE-EX, PTFE-EX |

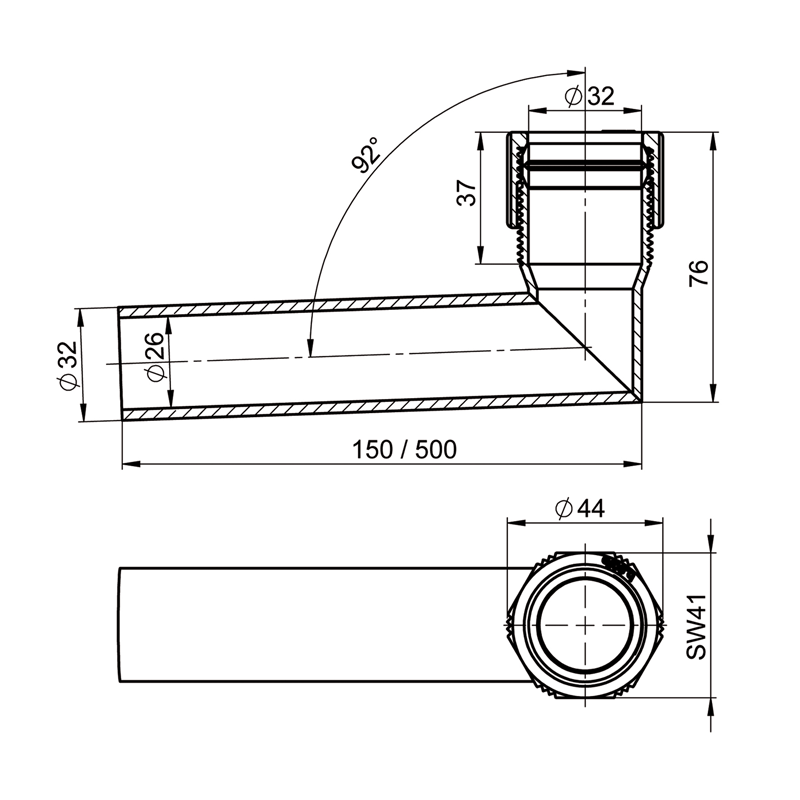

| Usable length 150 [mm] | 110 |
| Usable length 500 [mm] | 490 |
| Connection 1 | Clamp connection Ø 32 mm |
| Connection 2 | Tube O.D. 32 mm |
| Shape | L |
