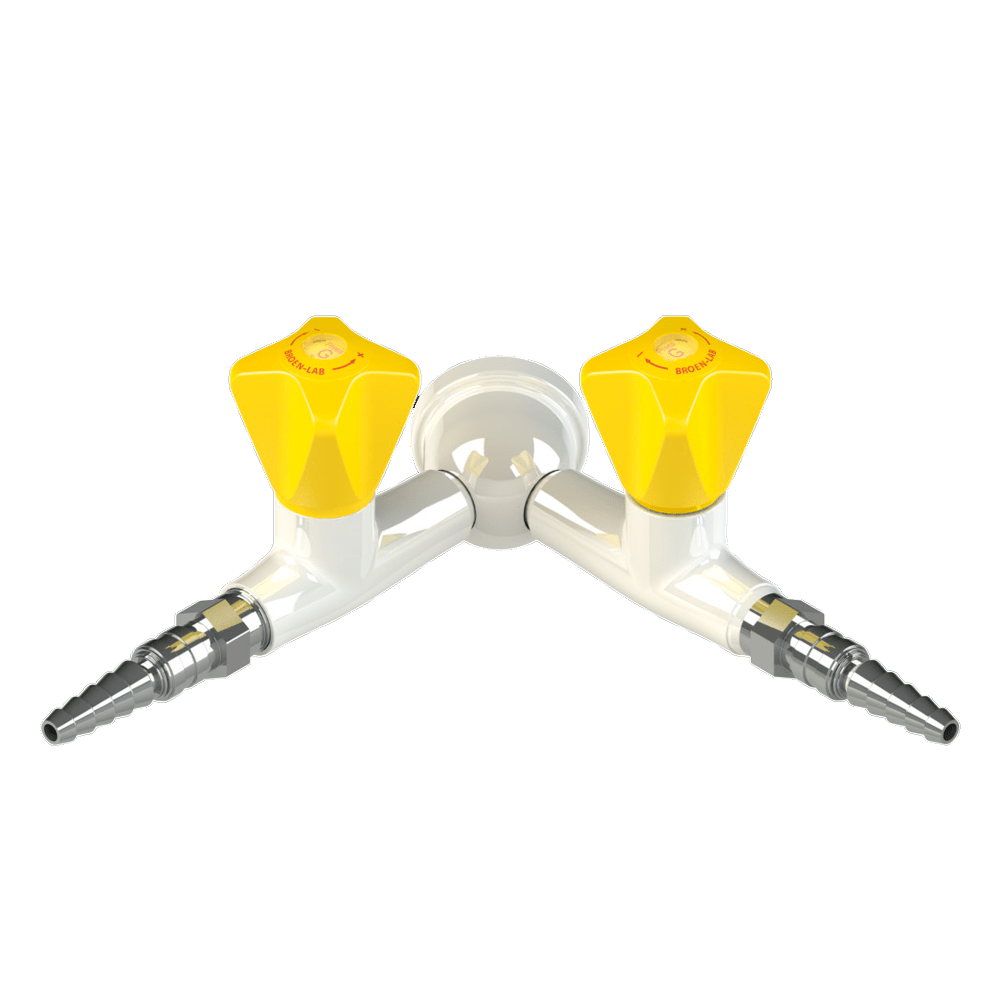

Double Wall Fittings with Straight Valves | BROEN
€196.25 – €293.75 ex. VAT
Description
BROEN-LAB UniFlex™ double wall fittings with straight valves provide a reliable solution for laboratory environments, especially for handling non-burning 2.0 gases. To start, these gases—99% pure—include compressed air, nitrogen, carbon dioxide, and argon, ensuring consistent and efficient performance. Additionally, the fittings feature a sturdy construction with a fixed metal nozzle, allowing secure and lasting connections.
Moreover, the straight valve design enables effortless operation and precise gas flow control, making it ideal for laboratories requiring accuracy. Users can fine-tune media flow with the needle headwork, which fully opens after three 360° handle rotations. Furthermore, for applications needing increased flow rates, the high-flow headwork option enhances efficiency.
In addition, when microscopic flow control is necessary, the micro-flow headwork provides extremely fine adjustments. Most importantly, the BROEN-LAB POLYCOAT powder coating adds superior resistance against chemicals, UV fading, and heat. As a result, these fittings maintain durability and efficiency, making them a practical and dependable choice for demanding laboratory conditions.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2532 054 1031-52B, 2532 055 1031-52B, 2532 054 1032-52B, 2532 055 1032-52B |
| Media type | Natural Gas, Liquefied petroleum gas |
| Mounting | Wall |
| Handle | Polypropylene with media indication according to EN13792 |
| Hose nozzle | Metal, fixed |
| Headwork | Ceramic press/turn |
| Opening/Closing function | 90° |
| Max. working pressure | 7 bar / 102 psi |
| Allowable trest pressure after installation | 10 bar wihout function of the valve |
| Metals with media contact | Brass, NBR (rubber hose) |
| Sealing with media contact | Nitrile (NBR) |
| Lubricant with media contact | Mineral oil based |
| Ceramics with media contact | AI2O3 96% |
| Nozzle Type | Fixed nozzle, With quick release coupling |
