Double Wall Fittings with Straight Valves 4.0 gases | BROEN
€284.75 – €441.00 ex. VAT
Description

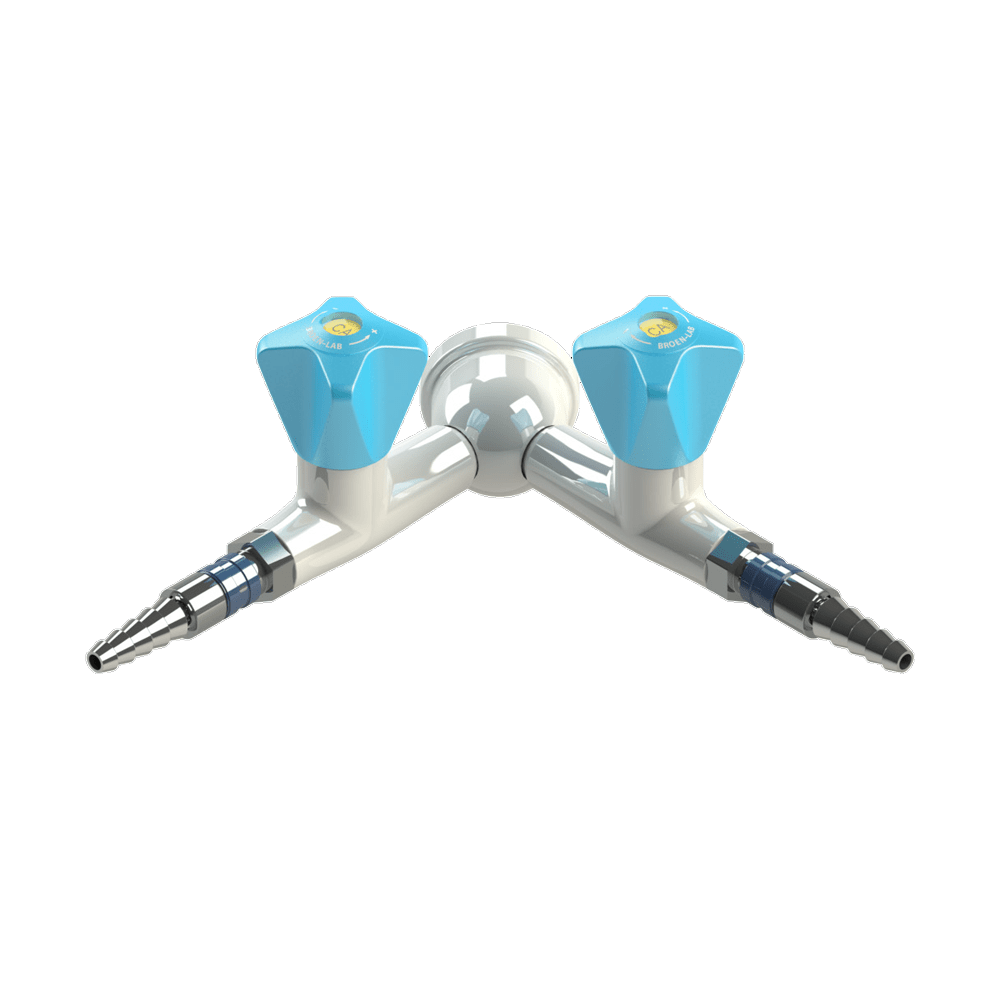

BROEN-LAB UniFlex™ PREMIUM Double Wall Fittings for non-burning 4.0 gases ensure safe and efficient oxygen service in laboratory environments. Their Straight Valve design provides precise control and smooth operation, making them reliable for handling various gases. Additionally, the BROEN-LAB POLYCOAT powder coating enhances durability by resisting chemicals, UV fading, and heat.
Moreover, these fittings come with a 700mm PTFE hose featuring an OD10mm inlet connection, ensuring compatibility with multiple gases such as compressed air, oxygen, nitrogen, carbon dioxide, argon, helium, and dinitrogen monoxide. Furthermore, they are available with either a fixed metal nozzle or a quick-release coupling, offering secure and adaptable connections.
Most importantly, these fittings meet modern laboratory requirements by combining high quality with low life cycle costs. The system’s flexibility allows various connection methods, including hoses, Cu, PEX, or stainless steel pipes, without requiring valve replacement. This adaptability makes them a practical and cost-effective choice for laboratory applications.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2532 064 1021-52B – 2532 132 1027-52B |
| Media type | Compressed Air, Oxygen, Nitrogen, Carbon Dioxide, Argon, Helium, Dinitrogen monoxide |
| Mounting | Wall |
| Handle | Polypropylene with media indication according to EN13792 |
| Head nozzle | Metal, fixed (can be unscrewed with Allen key, thread: male G3/8) |
| Headwork | Needle |
| Opening/closing function | 3 x 360° |
| Max. working pressure | 16 bar / 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metal with media contact | Brass |
| Plastics with media contact | PVDF, PTFE (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Nozzle type | Fixed nozzle, With quick release coupling (hexagon coded) |
