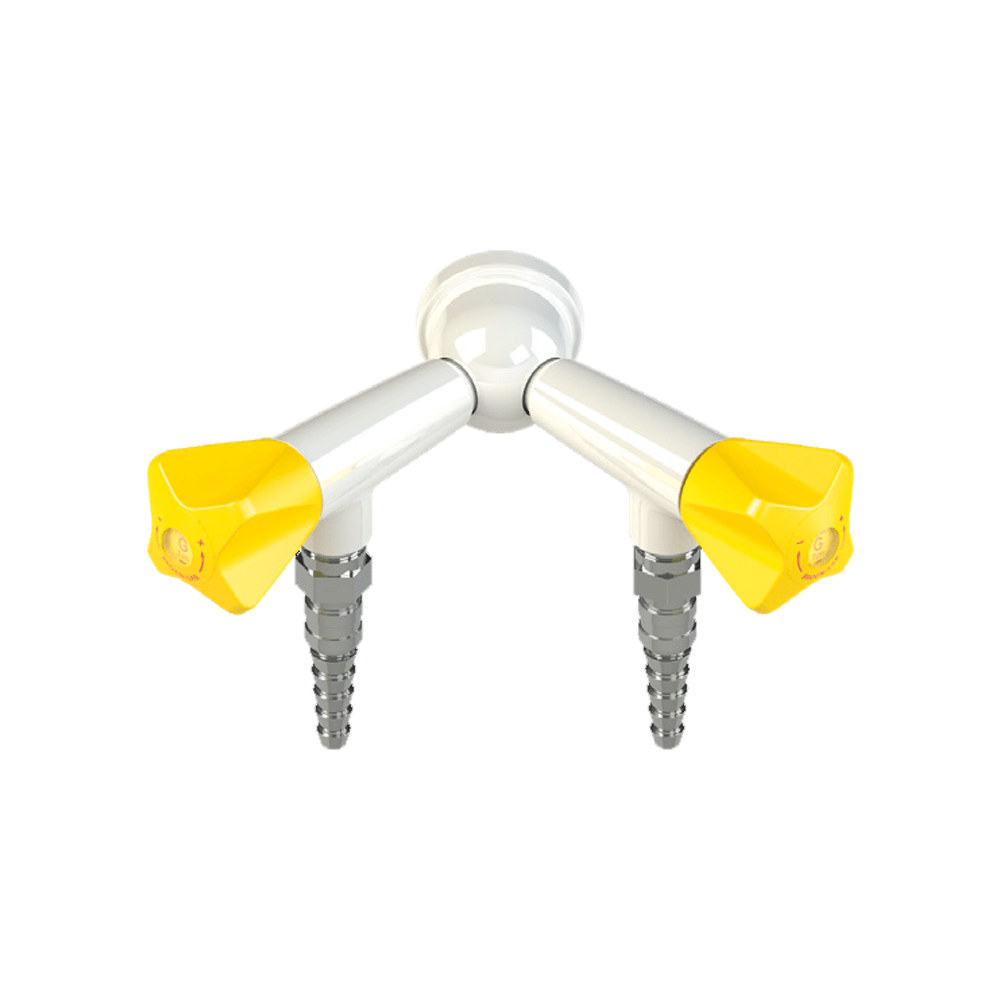

Double Wall Fittings with 90° valves | BROEN
€190.00 – €287.50 ex. VAT
Description
BROEN-LAB UniFlex™ double wall fittings with 90° valves ensure secure and efficient gas handling in laboratory environments. To start, they support non-burning 2.0 gases, including compressed air, nitrogen, carbon dioxide, and argon, guaranteeing reliable performance. Additionally, their robust construction and fixed metal nozzle create secure, long-lasting connections.
Moreover, the 90° valve design allows smooth operation and precise gas flow control, making these fittings ideal for laboratories that require accuracy. Users can fine-tune media flow using the needle headwork, which fully opens after turning the handle three times in 360° rotations. Furthermore, when applications demand increased flow rates, the high-flow headwork option significantly enhances efficiency.
In addition, for microscopic flow control, the micro-flow headwork provides exceptionally fine adjustments. Most importantly, the BROEN-LAB POLYCOAT powder coating resists chemicals, UV fading, and heat, ensuring durability and longevity. As a result, these fittings deliver a practical and dependable solution for laboratory conditions.
Additional information
| Weight | 2 kg |
|---|---|
| Model | 2530 218 1031-52B, 2530 219 1031-52B, 2530 218 1032-52B, 2530 219 1032-52B |
| Media type | Natural Gas, Liquefied petroleum gas |
| Mounting | Suspended |
| Handle | Polypropylene with media indication according to EN13792 |
| Hose nozzle | Metal, fixed |
| Headwork | Ceramic press/turn |
| Opening/Closing function | 90° |
| Max. working pressure | 7 bar / 102 psi |
| Allowable trest pressure after installation | 10 bar wihout function of the valve |
| Metals with media contact | Brass, NBR (rubber hose) |
| Sealing with media contact | Nitrile (NBR) |
| Lubricant with media contact | Mineral oil based |
| Ceramics with media contact | AI2O3 96% |
| Nozzle Type | Fixed nozzle, With quick release coupling |
