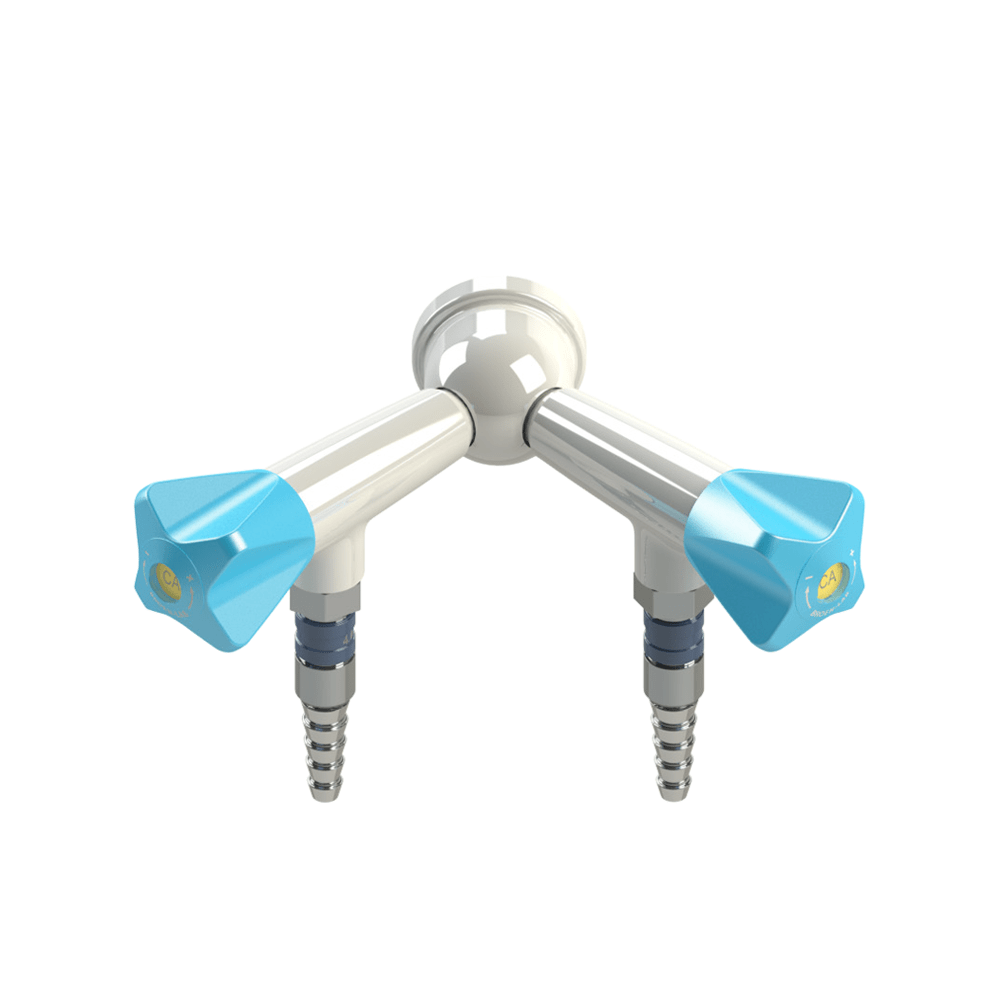

Double Wall Fittings with 90° Valves 4.0 gases | BROEN
€284.75 – €447.00 ex. VAT
Description
BROEN-LAB UniFlex™ PREMIUM Double Wall Fittings with 90° Valves provide safe and efficient oxygen service for laboratories. To ensure smooth operation, their 90° valve design offers precise control, making them ideal for exposed piping setups. Additionally, the BROEN-LAB POLYCOAT powder coating increases durability by resisting chemicals, UV fading, and heat.
Moreover, these fittings offer secure connections with a fixed metal nozzle or a quick-release coupling, providing flexibility for various applications. Furthermore, they meet modern laboratory standards by combining high quality, durability, and low life cycle costs.
Most importantly, the system adapts to multiple connection methods, including hoses, Cu, PEX, or stainless steel pipes, without requiring valve replacement. As a result, this versatility ensures reliability and efficiency in laboratory installations.
Additional information
| Weight | 1.5 kg |
|---|---|
| Model | 2530 249 1021-52B – 2530 250 1027-52B |
| Media type | Compressed Air, Oxygen, Nitrogen, Carbon Dioxide, Argon, Helium, Dinitrogen monoxide |
| Mounting | Wall |
| Handle | Polypropylene with media indication according to EN13792 |
| Head nozzle | Metal, fixed (can be unscrewed with Allen key, thread: male G3/8) |
| Headwork | Needle |
| Opening/closing function | 3 x 360° |
| Max. working pressure | 16 bar / 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metal with media contact | Brass |
| Plastics with media contact | PVDF, PTFE (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Nozzle type | Fixed nozzle, With quick release coupling (hexagon coded) |
