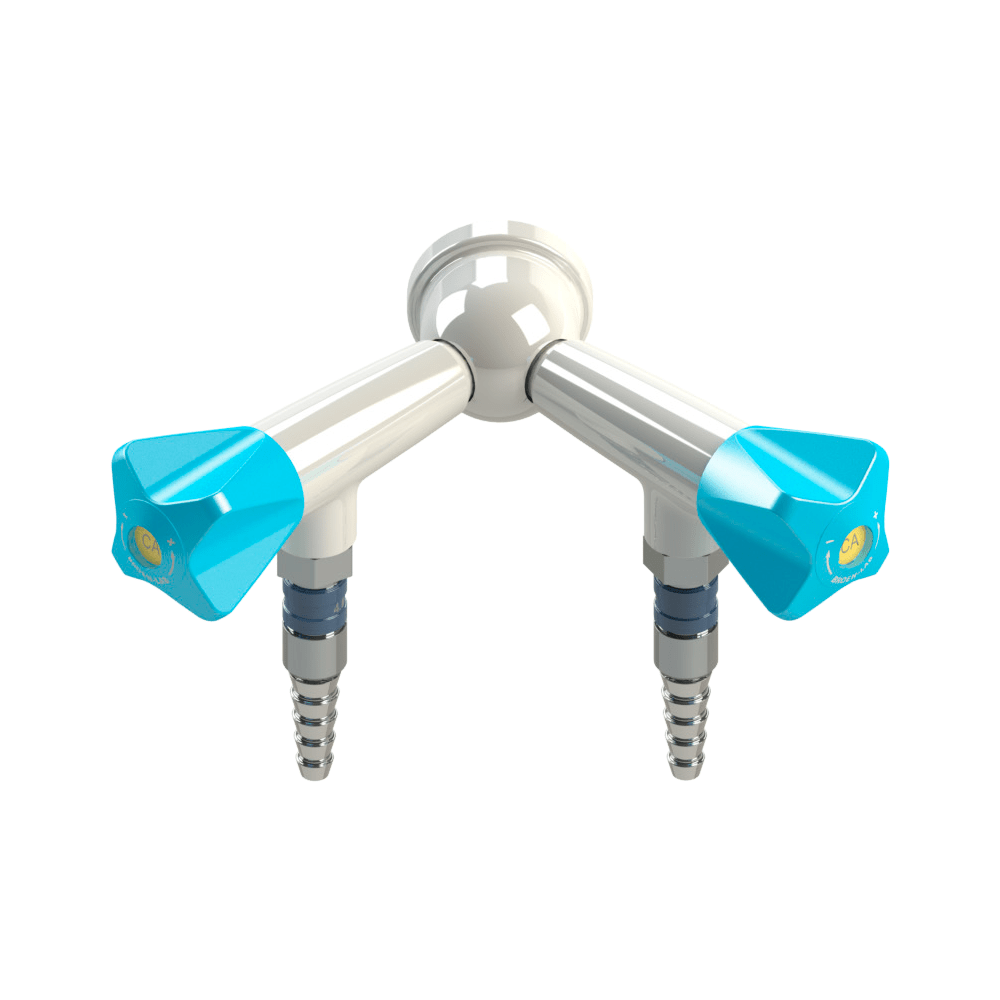

Double Wall fittings with 90° Valves Non-Burning 2.0 gases | BROEN
€173.00 – €282.25 ex. VAT
Description
BROEN-LAB UniFlex™ double wall fittings with 90° valves provide secure and efficient gas handling in laboratory settings. Their robust construction, featuring a fixed metal nozzle, ensures reliable connections and long-term durability. The 90° valve design enables smooth operation and precise control, making adjustments effortless.
Moreover, the fittings include a needle headwork for fine regulation of media flow. The valve fully opens after three 360° rotations of the handle, allowing accurate flow control. Additionally, for higher flow rates, a high-flow headwork option is available. For applications requiring microscopic flow adjustments, the micro-flow headwork offers extremely precise regulation.
Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance to chemicals, UV fading, and heat. This treatment ensures longevity and dependable performance, even in demanding laboratory conditions.
Additional information
| Weight | 1.5 kg |
|---|---|
| Model | 2530 185 1021-52B – 2530 188 1028-52B |
| Media type | Compressed air, Nitrogen, Carbon dioxide, Argon, Helium, Low vacuum (1000 to 1 mbar) |
| Mounting | Wall |
| Handle | Polypropylene, media indication according to EN13792 |
| Hose nozzle | Polypropylene, fixed (can be unscrewed by hand, thread: male G3/8) |
| Headwork 2.0 gases | Needle |
| Headwork vacuum | High flow |
| Opening /closing function 2.0 gases | 3 x 360° |
| Opening /closing function vacuum | 1.5 x 360° |
| Max working pressure 2.0 gases | 16 bar / 232 psi |
| Working pressure vacuum | -1 bar to 16 bar / -14.5 psi to 232 psi |
| Allowable test pressure after installation | 1.5 x max working pressure without function of the valve |
| Metals with media contact | Brass |
| Plastics with media contact | PVDF, PP, SPX (hose) |
| Sealing with media contact | FKM |
| Lubricant with media contact | Perfluoropolyether based |
| Connection type | With fixed nozzle, With hexagon coded quick release coupling |
