Desktop Mount Multiport IV for waste pipes | b.safe
€280.57 ex. VAT
Description

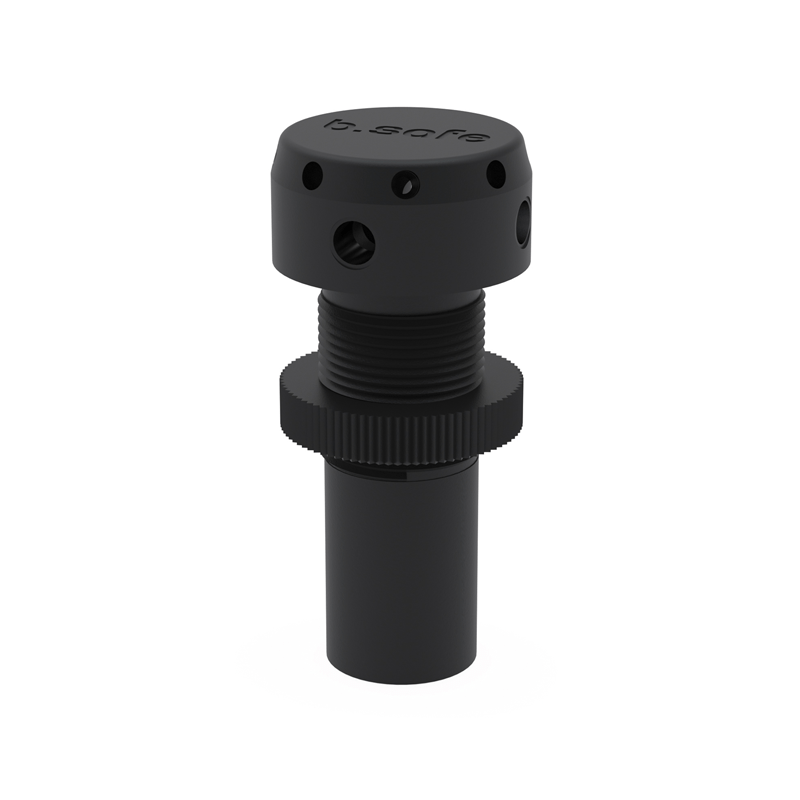

The Desktop Mount Multiport IV by improves waste management efficiency in laboratories. Made from static dissipative PE-EX, it protects against electrostatic discharge while remaining durable.
Additionally, this mount fits tiles 10 to 35 mm thick and installs easily with a counter nut, ensuring stability. Its low height and inclined side connections prevent tube bending, allowing smooth attachment.
Moreover, the upper side includes:
- 4×2 capillaries (female thread UNF 1/4”) for capillary connections with fittings
- 4×1 tube connection (female thread NPT 1/8”) for hose connectors (not included), ensuring versatility
Meanwhile, the O.D. 32 mm bottom connection integrates with rigid Pipe Connections, which users can shorten if needed.
Furthermore, this setup supports up to 4 HPLC systems, making integration into lab hoods or workstations seamless. By channeling liquid solvent waste into canisters via Waste Tubes, it maintains a clean and safe workspace.
Additional information
| Chemical resistance | ++ very good |
|---|---|
| Temperature resistance | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material | PE-EX |

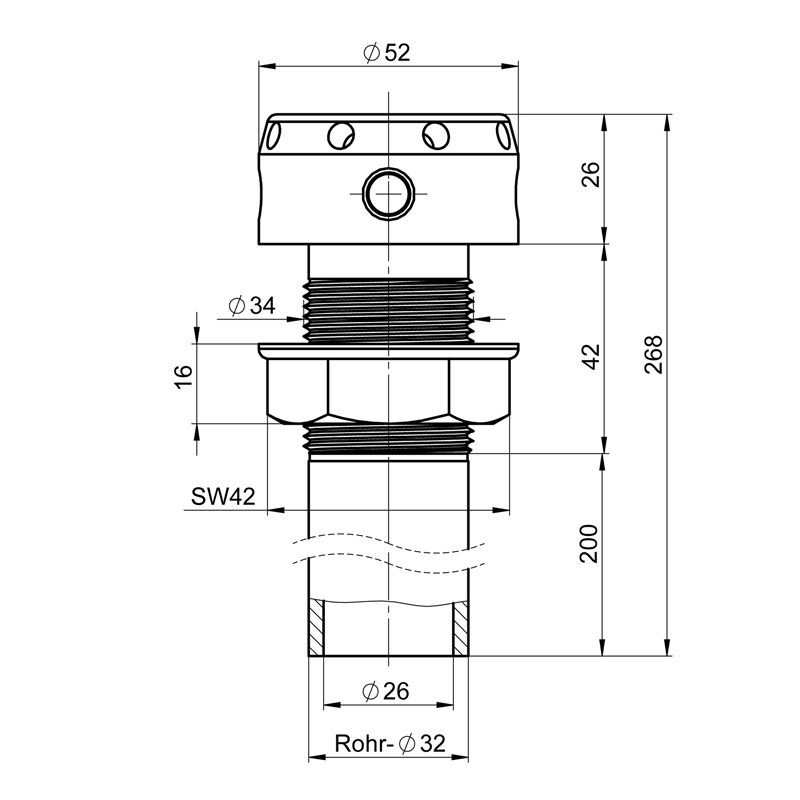

| Total length (mm) | 268 |
| Connection (upper side) | O.D. 32 mm |
| Number of hose connections | 8x UNF 1/4" |
