Desktop Mount Multiport IV | b.safe
€208.17 ex. VAT
Description

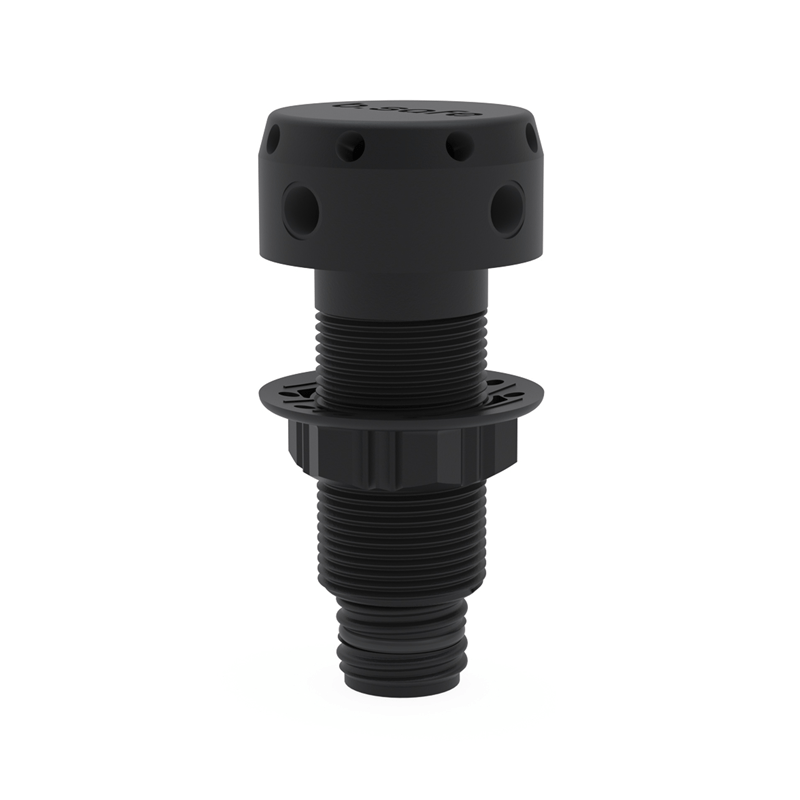

The Desktop Mount Multiport IV by ensures safe and efficient liquid waste management in laboratories. Made from static dissipative PE-EX, it provides electrostatic protection while maintaining durability.
Designed for boards 10 to 35 mm thick, it features a secure fixing mechanism with a counter nut, ensuring stability. Additionally, its low installation height and inclined side connections allow tubings to connect without bending, improving functionality.
The upper side includes:
- 4×2 capillary connections (thread UNF 1/4”) for capillaries with fittings
- 4×1 hose connections (thread NPT 1/8”) for hose connectors (not included), ensuring adaptability
Meanwhile, the male thread GL25 bottom connection allows direct integration with flexible Waste Tubes, optimizing waste disposal efficiency.
Moreover, the mount supports up to 4 HPLC systems, making it ideal for laboratory hoods or workstations. By efficiently channeling liquid solvent waste into connected canisters via Waste Tubes, it helps maintain a clean and safe workspace.
Additional information
| Chemical resistance | ++ very good |
|---|---|
| Temperature resistance | from -50°C to +80°C |
| Conductivity | 1.000 kOhm |
| Material | PE-EX |
| Total length (mm) | 100 |
| Connection (upper side) | GL45 |
| Number of hose connections | 4x NPT 1/8" |
