Connector for Waste Pipes | b.safe
€104.43 ex. VAT
Description

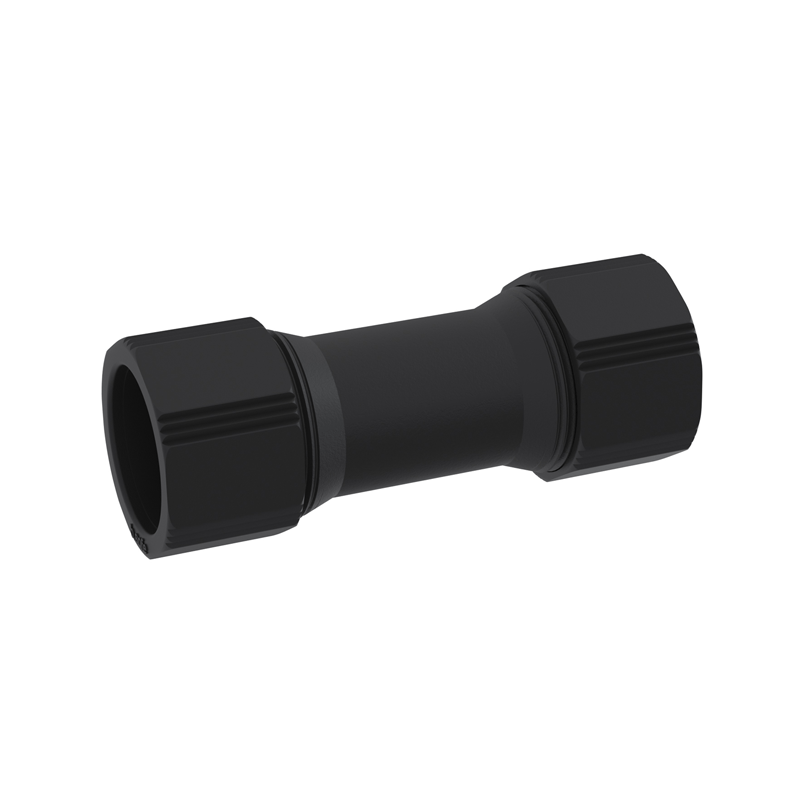

The Connector for Waste Pipes ensures secure and efficient connections in laboratory and industrial environments. Made from static dissipative PE-EX, it enhances safety while maintaining durability.
Additionally, this straight connector features clamp connections on both sides, allowing easy fixing and clamping of Waste Pipes (O.D. 32 mm).

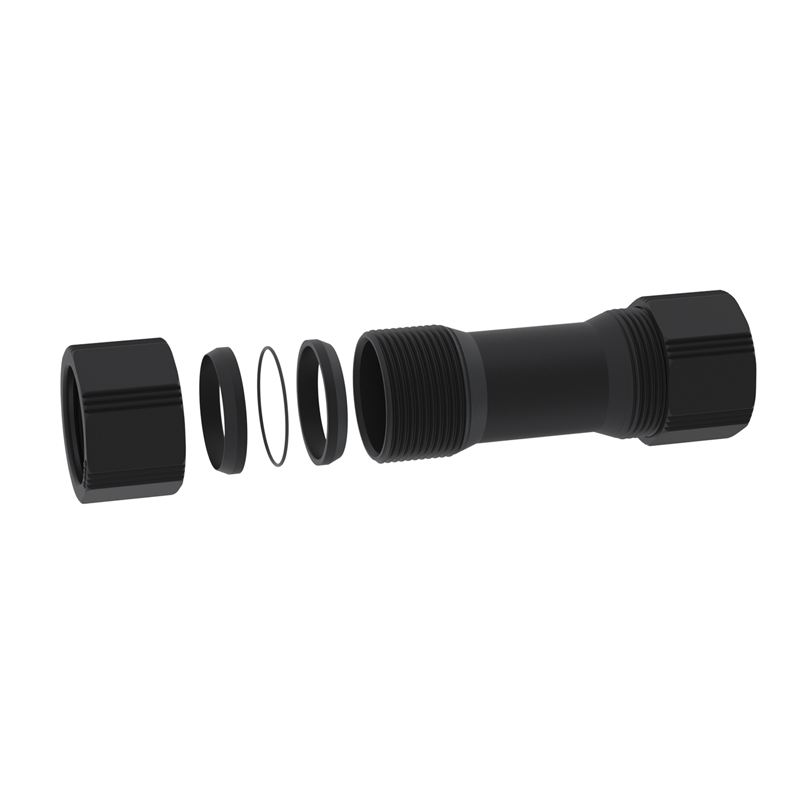

Moreover, each clamp connection includes:
- A lock nut in PE-EX for stability
- Two conical sealing rings in PTFE-EX ensuring a tight seal
- An O-ring in EPDM to prevent leaks
Furthermore, its static dissipative properties help prevent static buildup, making it safer for environments where flammable solvents are used.
With high-quality materials, it offers exceptional durability and chemical resistance, making it suitable for HPLC, UPLC, ÄKTA, and PE-EX systems. This ensures a reliable and leak-proof waste management setup in various laboratory applications.
Additional information
| Connection | Clamp connection Ø 32 mm |
|---|---|

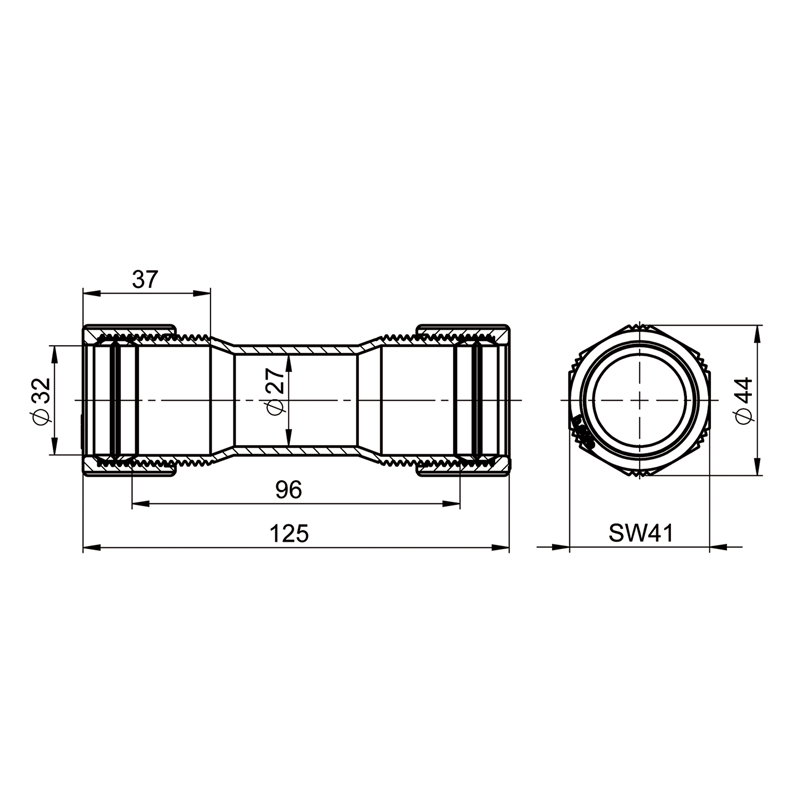

| Dimensions [(LxØ) mm] | 125 x 44 |
| Chemical resistance | ++ very good |
| Temperature resistance | from -50°C to +80°C |
| Conductivity: | 1.000 kOhm |
| Material | PE-EX, PTFE-EX |
