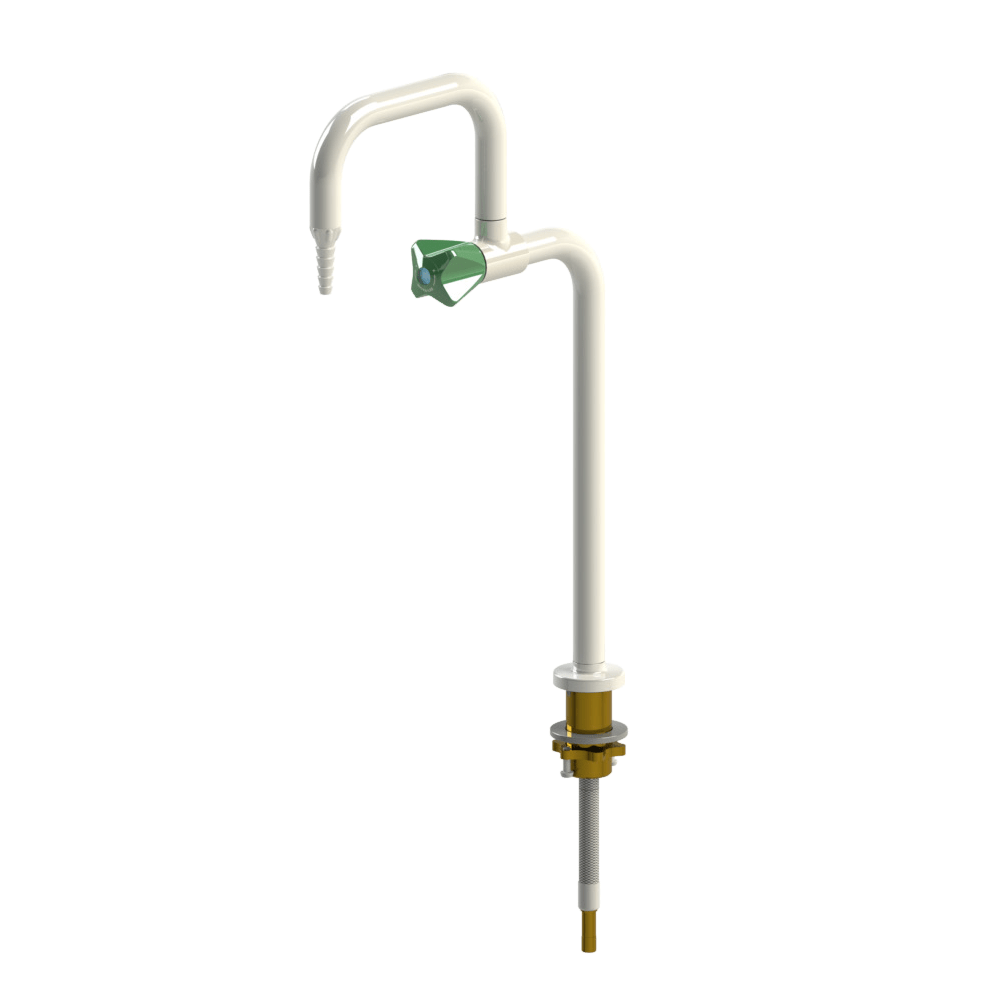

Bench Mounted Fitting on a Column with Swivel Spout | BROEN
€165.75 – €169.50 ex. VAT
Description
BROEN’s Bench Mounted Fitting on a Column with Swivel Spout enhances laboratory efficiency with a durable and flexible design. Crafted from high-quality materials, it features BROEN-LAB POLYCOAT powder coating, which strengthens resistance against chemicals, UV fading, and heat.
For added versatility, the fitting includes a full swivel spout, allowing effortless adjustments and improved usability. Additionally, the removable hose nozzle and loose union nut enable quick assembly and disassembly, even with a hose attached.
To ensure easy operation, the polypropylene handle provides a comfortable grip, allowing precise control. As a result, this fitting delivers reliable performance in modern laboratory environments.
Additional information
| Weight | 1.4 kg |
|---|---|
| Model | 2533 141 1001-52B, 2533 141 1007-52B, 2533 142 1001-52B, 2533 142 1007-52B |
| Media Type | Potable water, Non-potable water |
| Mounting | Bench |
| Spout Standoff | 150mm, 200mm |
| Handle | Polypropylene, with media indication according to EN13792 |
| Hose Nozzle | U-shape – fixed polypropylene (can be unscrewed by hand) |
| Headwork | Rubber (wrist action lever: ceramic) |
| Opening / Closing Function | 2 x 360° (wrist action lever: 90°) |
| Temperature Range | 0-65°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 2kg |
| Metals with media contact | Brass |
| Plastics with media contact | PP, SPX (hose) |
| Sealing with media contact | EPDM |
| Lubricants with media contact | Silicone based |
| Ceramics with media contact | Al2O3 96% (wrist action lever only) |
