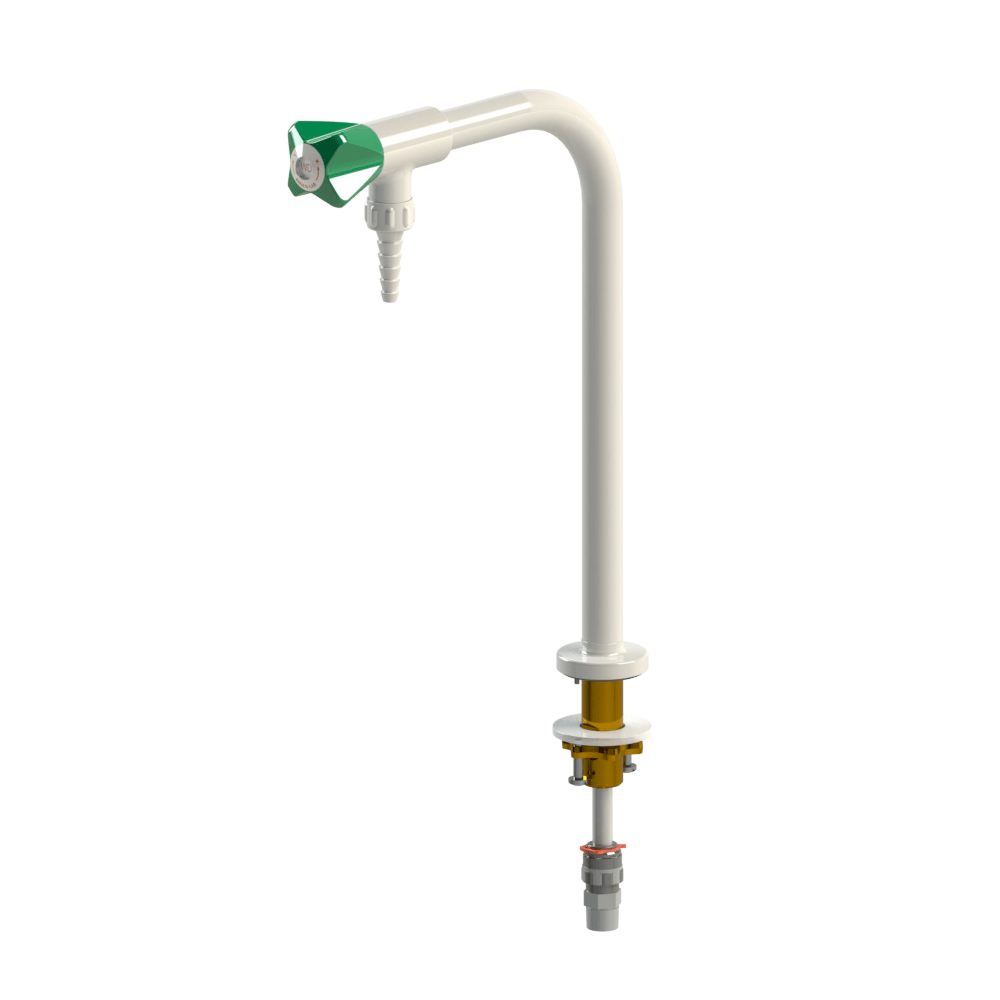

Bench Mounted Fitting On A Column With Plastic Inner Tube | BROEN
€159.00 – €169.00 ex. VAT
Description
BROEN’s Bench Mounted Fitting on a Column with a Plastic Inner Tube ensures efficient water management in laboratory environments. The detachable hose nozzle and loose union nut allow users to quickly assemble and disassemble the system, even with a hose attached. Additionally, the polypropylene handle offers a comfortable grip, making operation effortless.
The BROEN-LAB UniFlex™ fittings feature an LLDPE (Linear Low-Density Polyethylene) inner pipe, which resists corrosion and maintains water purity. This model includes an R3/8 push fitting, enabling flexible configurations for managing distilled or deionized water.
Moreover, the stainless steel construction increases durability while resisting chemicals, UV light, and heat. As a result, these features make the fitting a practical and dependable choice for modern laboratories.
Additional information
| Weight | 0.7 kg |
|---|---|
| Model | 2533 170 1003-09, 2533 159 1003-09, 2533 170 1036-09, 2533 159 1036-09, 2533 009 1003-09, 2533 011 1003-09, 2533 009 1036-09, 2533 011 1036-09 |
| Media type | Distilled water, Deionized cold water |
| Handle | Polypropylene |
| Media indication | according to EN13792 |
| Mounting | Bench |
| Hose nozzle | Removable polypropylene |
| Headwork | Diaphragm type |
| Opening/Closing function | 1 1/2 x 360° |
| Max. working pressure | 10 bar / 147 psi at 20°C, 6 bar / 87 psi at 65°C |
| Test pressure | 1 x working pressure |
| Weight | 0.7 |
| Diaphragm with media contacrt | PTFE |
| Rubber with media contact | EPDM |
| Plastics with media contact | LLDPE, POM, PP, PVDF |
| Spout Length | S150mm, S200mm |
| Connection type | With G3/8 push-in fitting, Without push-in fitting |
Related products

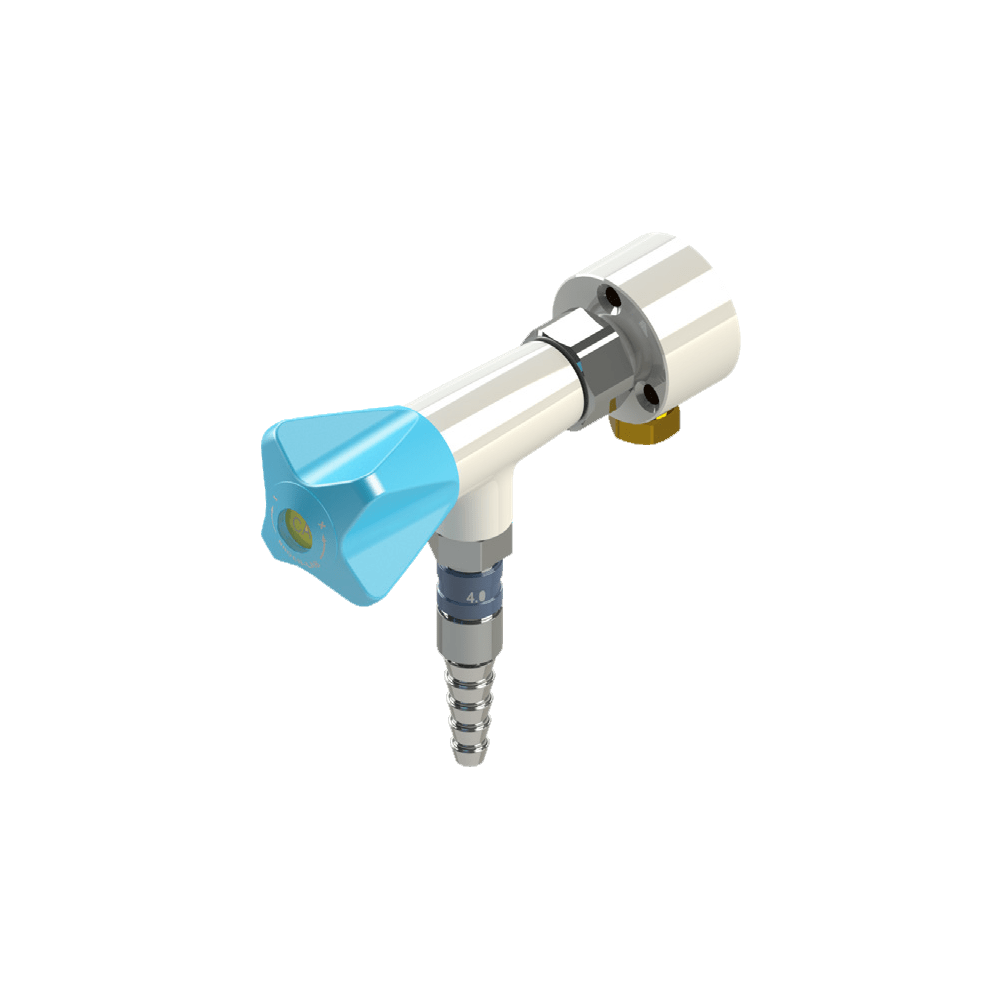

Wall Mounted Fittings with 90° Valves for Exposed Piping for non-burning 4.0 gases | BROEN
€212.75 – €284.25 ex. VAT
Double Wall Fittings with Straight Valves 4.0 gases | BROEN
€284.75 – €441.00 ex. VAT

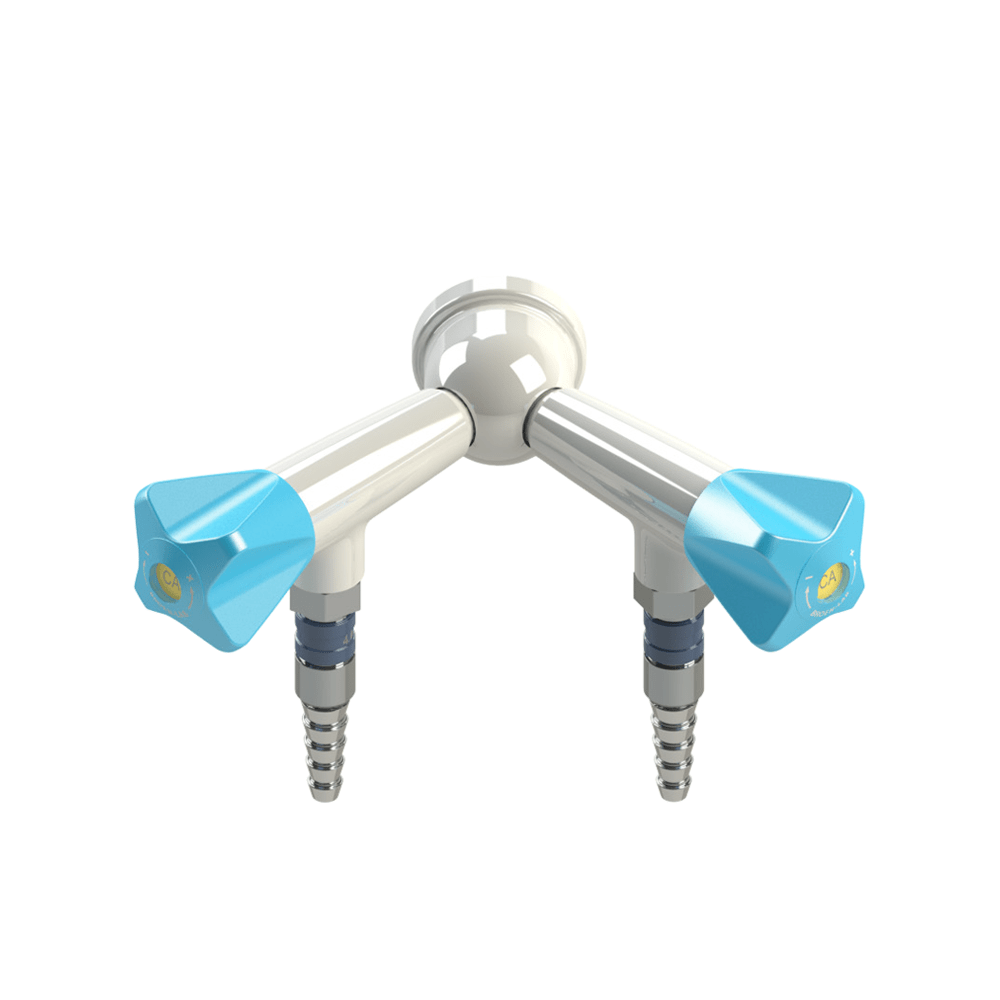

Double Wall Fittings with 90° Valves 4.0 gases | BROEN
