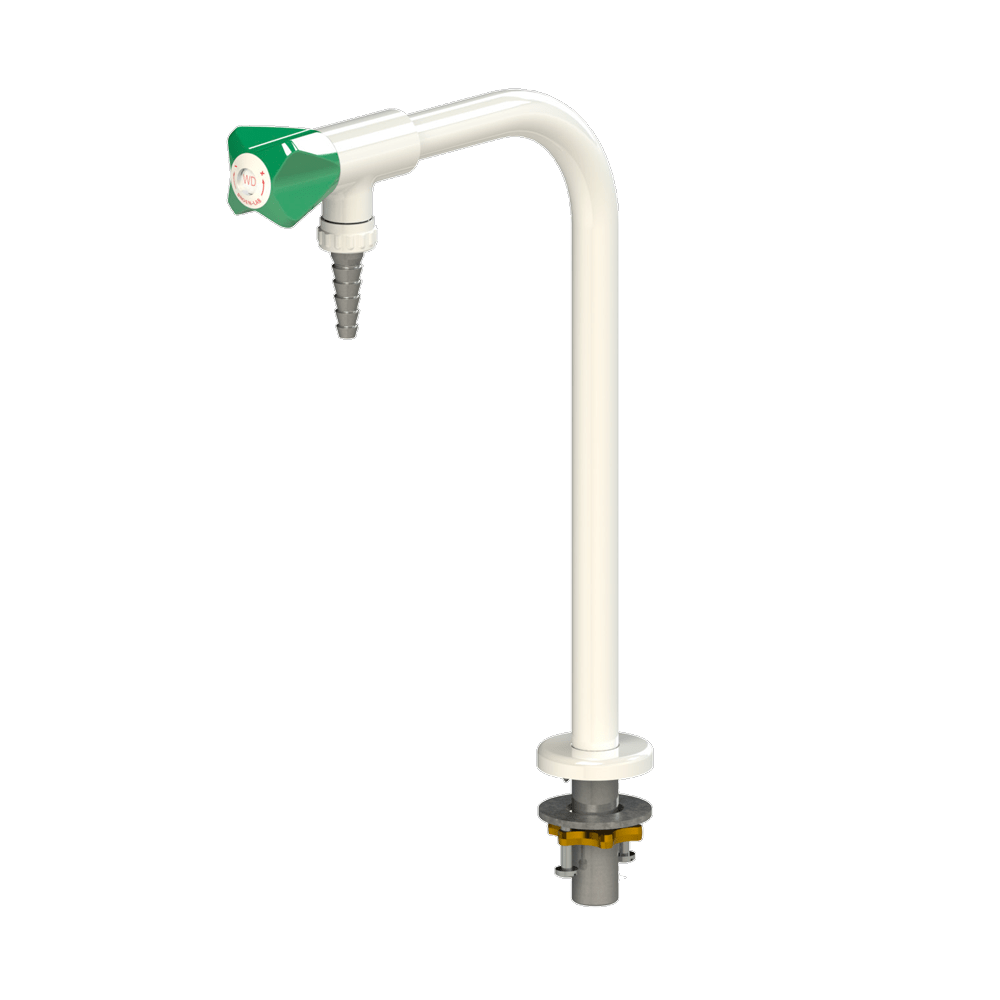

Bench Mounted Fitting on a Column in Stainless Steel | BROEN
€299.50 – €302.75 ex. VAT
Description
BROEN’s Bench Mounted Fitting on a Column in Stainless Steel delivers both efficiency and durability for laboratory water handling. It includes a detachable hose nozzle and a loose union nut, allowing for quick assembly—even with a hose attached. Moreover, the polypropylene handle improves comfort and simplifies operation.
Additionally, BROEN-LAB UniFlex™ fittings incorporate an LLDPE inner pipe, ensuring corrosion resistance while maintaining water purity. Furthermore, the model features an R3/8 push fitting, making it adaptable for managing distilled or deionized water across different laboratory setups.
Most importantly, its stainless steel construction provides outstanding durability while resisting chemicals, UV light, and heat. Consequently, this combination of features guarantees reliable performance, making it an excellent choice for laboratory applications.
Additional information
| Weight | 1.4 kg |
|---|---|
| Model | 2533 093 1003, 2533 007 1003, 2533 093 1036, 2533 007 1036, 2533 126 1003, 2533 028 1003, 2533 126 1036, 2533 028 1036 |
| Media type | Distilled water, Deionized cold water |
| Handle | Polypropylene |
| Media indication | according to EN13792 |
| Mounting | Bench |
| Headwork | Diaphragm type |
| Opening/Closing function | 1 1/2 x 360° |
| Max. working pressure | 10 bar / 147 psi |
| Temperature range | 0-90°C |
| Test pressure | 1 x working pressure |
| Weight | 1.4 |
| Diaphragm with media contacrt | PTFE |
| Rubber with media contact | EPDM |
| Metals with media contact | Stainless Steel, AISI 316 |
| Spout Length | S150mm, S200mm |
| Connection type | With removable nozzle, With G3/4 |
