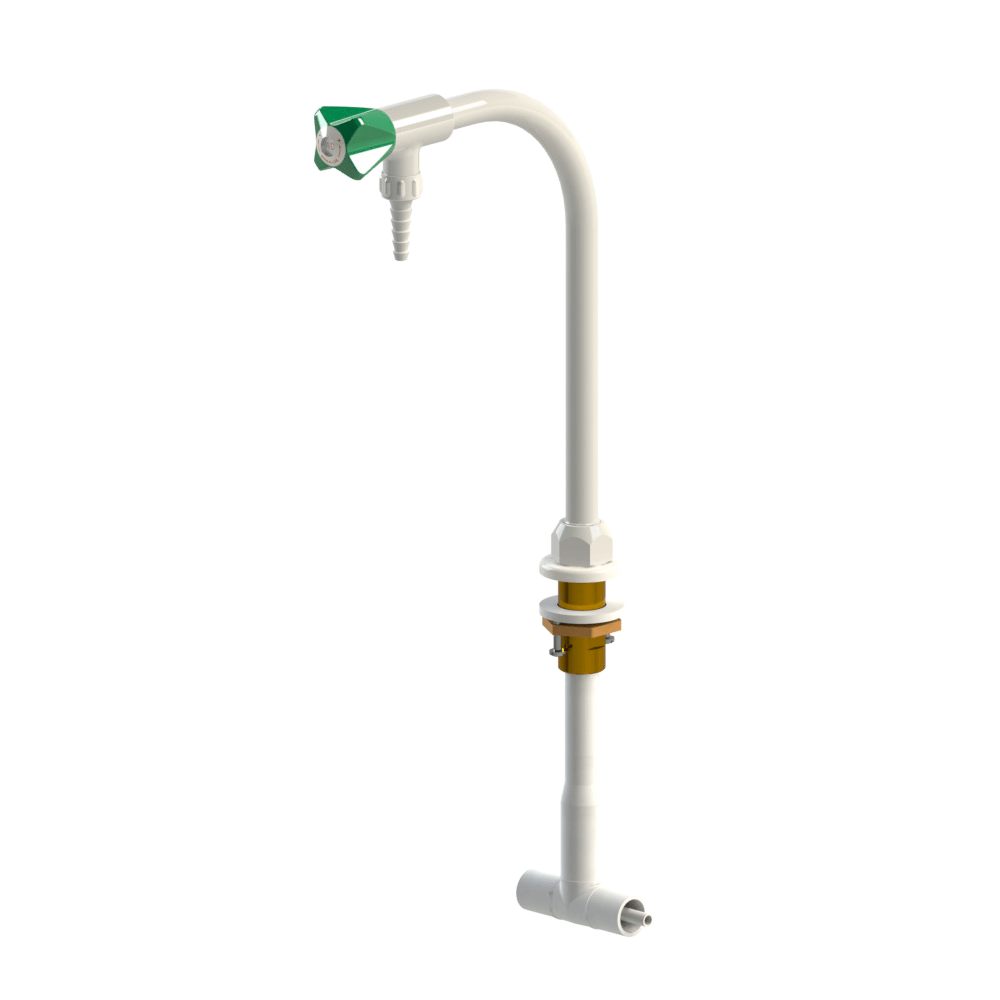

Bench Mounted Fitting on a Column – Fully Recirculating | BROEN
€578.00 ex. VAT
Description
BROEN’s Bench Mounted Fitting on a Column – Fully Recirculating provides efficient and secure water management in laboratory settings. The detachable hose nozzle and loose union nut enable quick assembly and disassembly, even when a hose remains attached. The polypropylene handle ensures a comfortable grip and effortless operation.
The BROEN-LAB UniFlex™ fittings use an LLDPE (Linear Low-Density Polyethylene) inner pipe, offering corrosion resistance while maintaining water purity. The model includes an R3/8 push fitting, allowing flexible configurations to handle distilled or deionized water.
Its stainless steel construction enhances durability, while resisting chemicals, UV light, and heat. These features make it a practical and dependable choice for laboratory applications.
Additional information
| Weight | 1.8 kg |
|---|---|
| Model | 2533 121 1003, 2533 021 1003, 2533 121 1036, 2533 021 1036 |
| Media type | Distilled water, Deionized cold water |
| Media indication | according to EN13792 |
| Mounting | Bench |
| Handle | Polypropylene |
| Hose nozzle | Removable polypropylene |
| Headwork | Diaphragm type |
| Opening/Closing function | 1 1/2 x 360° |
| Temperature range | 0-65°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 1.8 |
| Diaphragm with media contacrt | PTFE |
| Rubber with media contact | EPDM |
| Plastics with media contact | PP, PP-n, PVDF |
| Spout Length | S150mm, S200mm |
| Connection type | OD25mm, OD32mm |
