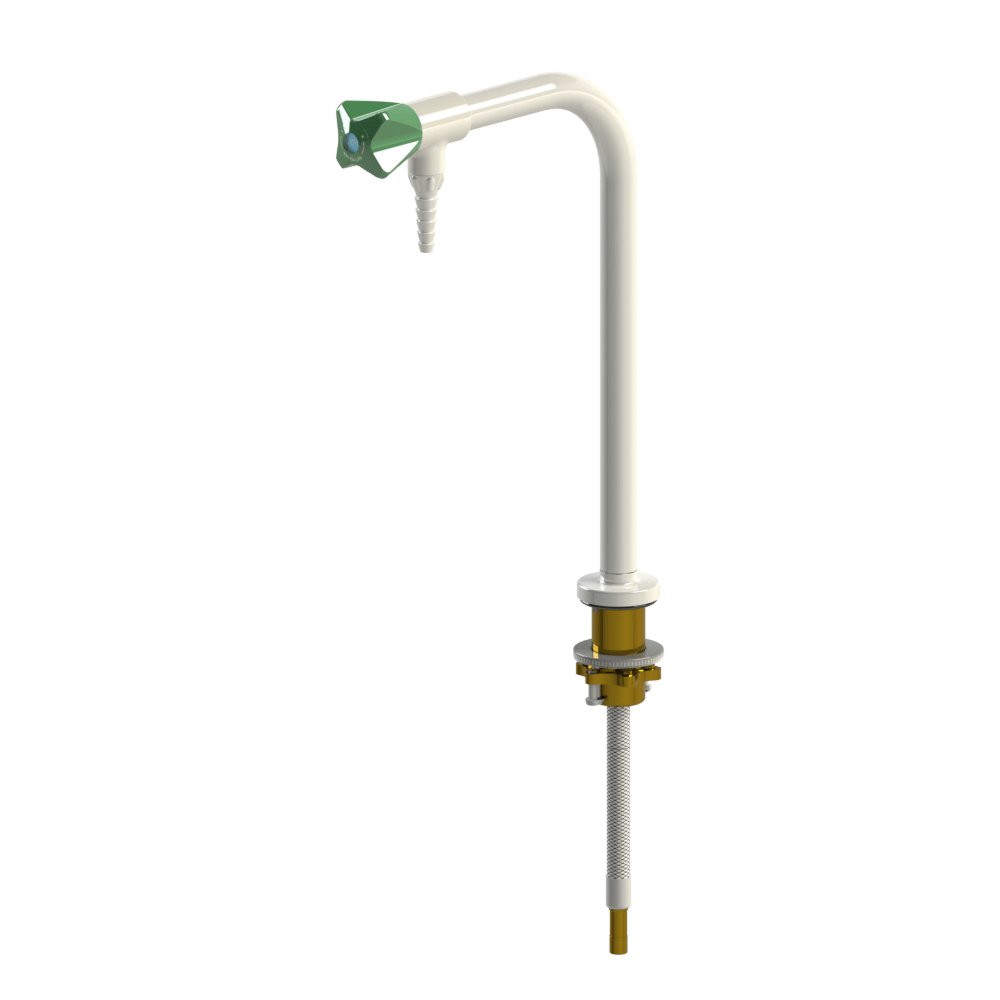

Bench Fitting Mounted on a Column | BROEN
€125.00 ex. VAT
Description
BROEN’s Bench Fitting Mounted on a Column offers precision and durability for modern laboratories. Constructed from high-quality materials, it features BROEN-LAB POLYCOAT powder coating, ensuring exceptional resistance to chemicals, UV fading, and heat.
Designed for effortless operation, the fitting includes an integrated BALLOFIX® ball valve that allows precise control. Additionally, the removable hose nozzle and loose union nut enable quick assembly and disassembly, even with an attached hose.
To enhance user experience, the polypropylene handle provides a comfortable grip, ensuring smooth and efficient functionality.
Additional information
| Weight | 1.5 kg |
|---|---|
| Model | 2533 085 1001-52B, 2533 097 1001-52B, 2533 085 1007-52B, 2533 097 1007-52B |
| Media Type | Potable water, Non-potable water |
| Mounting | Bench |
| Spout Standoff | 150mm, 200mm |
| Handle | Polypropylene, with media indication according to EN13792 |
| Hose Nozzle | Fixed Polypropylene (can be unscrewed by hand, thread: male G3/8) |
| Headwork | Rubber (wrist action lever: ceramic) |
| Opening / Closing Function | 2 x 360° (wrist action lever: 90°) |
| Temperature Range | 0-65°C |
| Max. working pressure | 10 bar / 147 psi |
| Test pressure | 1 x working pressure |
| Weight | 1.5 kg |
| Metals with media contact | Brass |
| Plastics with media contact | PP, SPX (hose) |
| Sealing with media contact | EPDM |
| Lubricants with media contact | Silicone based |
| Ceramics with media contact | Al2O3 96% (wrist action lever only) |
