Battery Station – S
€3,471.09 ex. VAT
Description

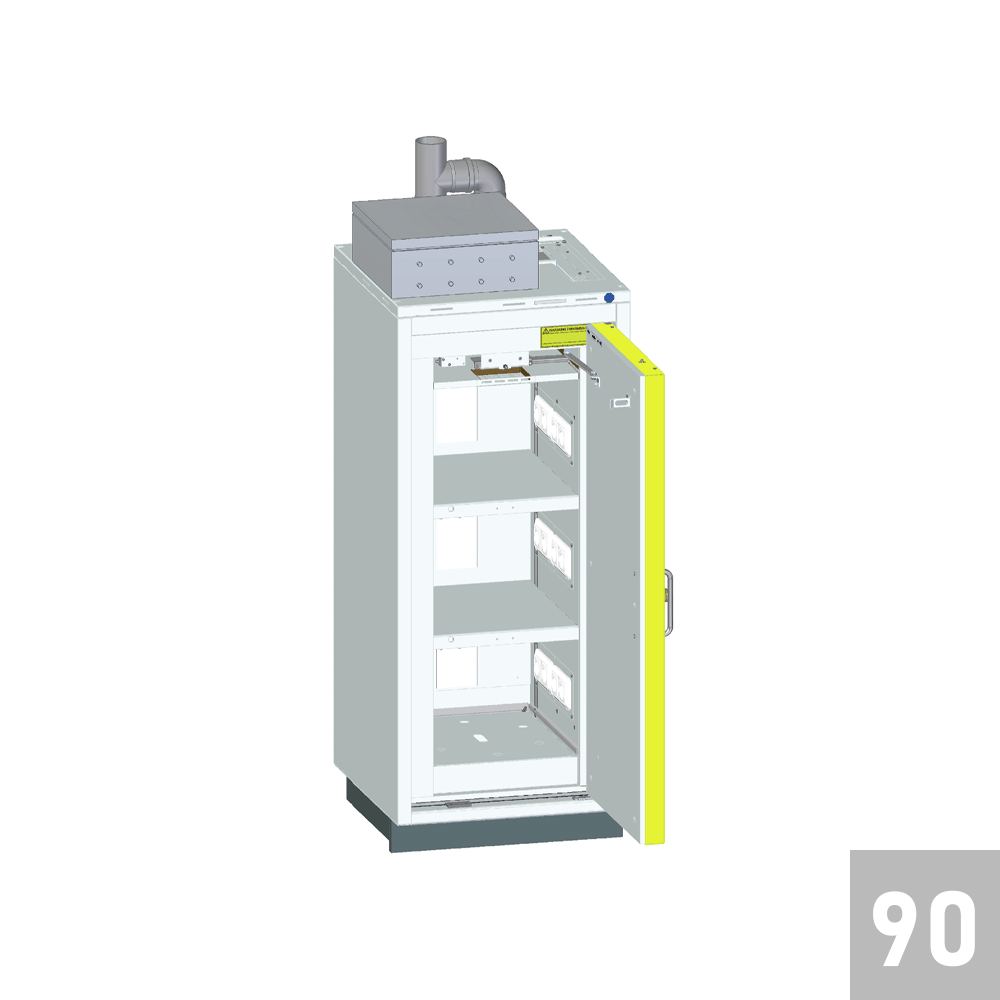

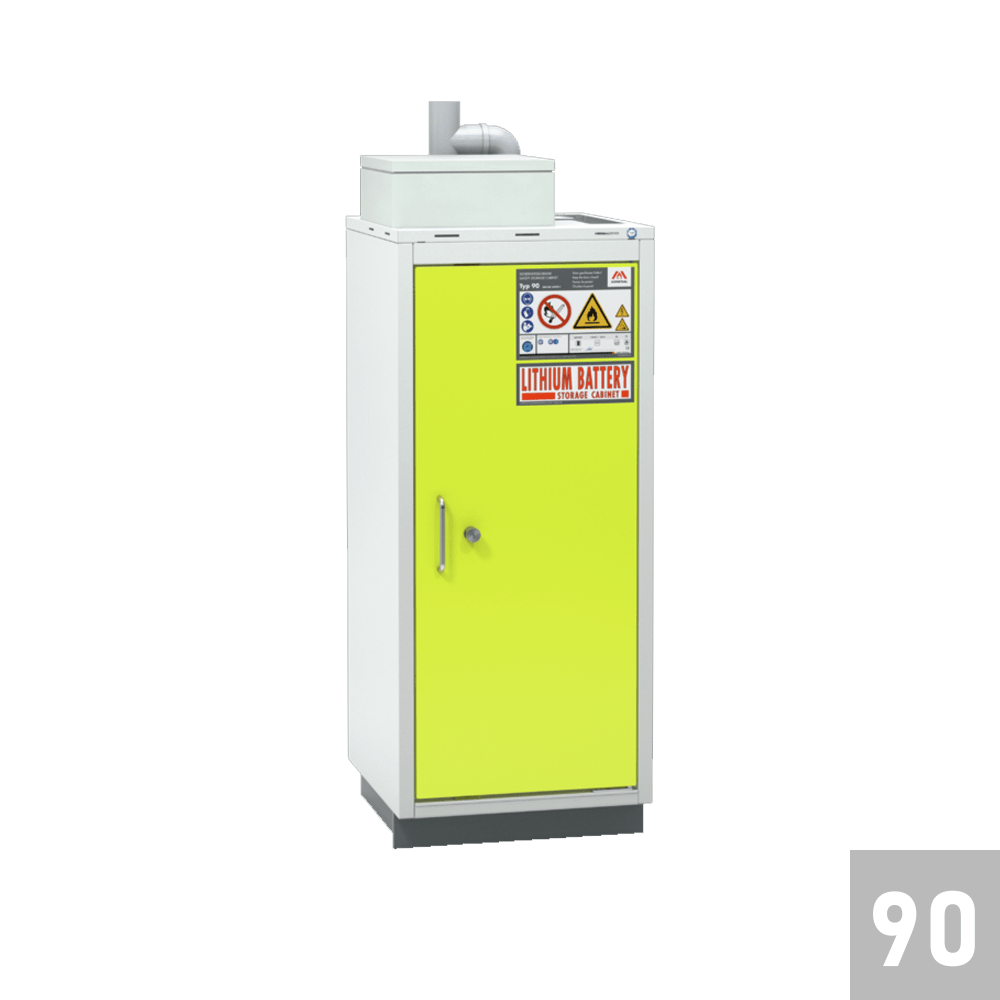

Battery Station S provides secure and efficient battery storage. Its outer carcass, made from durable sheet steel, features a RAL 7035 finish. The PANTONE 389 C door adds contrast. Inside, decor panels and a load adapter in RAL 7035 enhance durability and design.

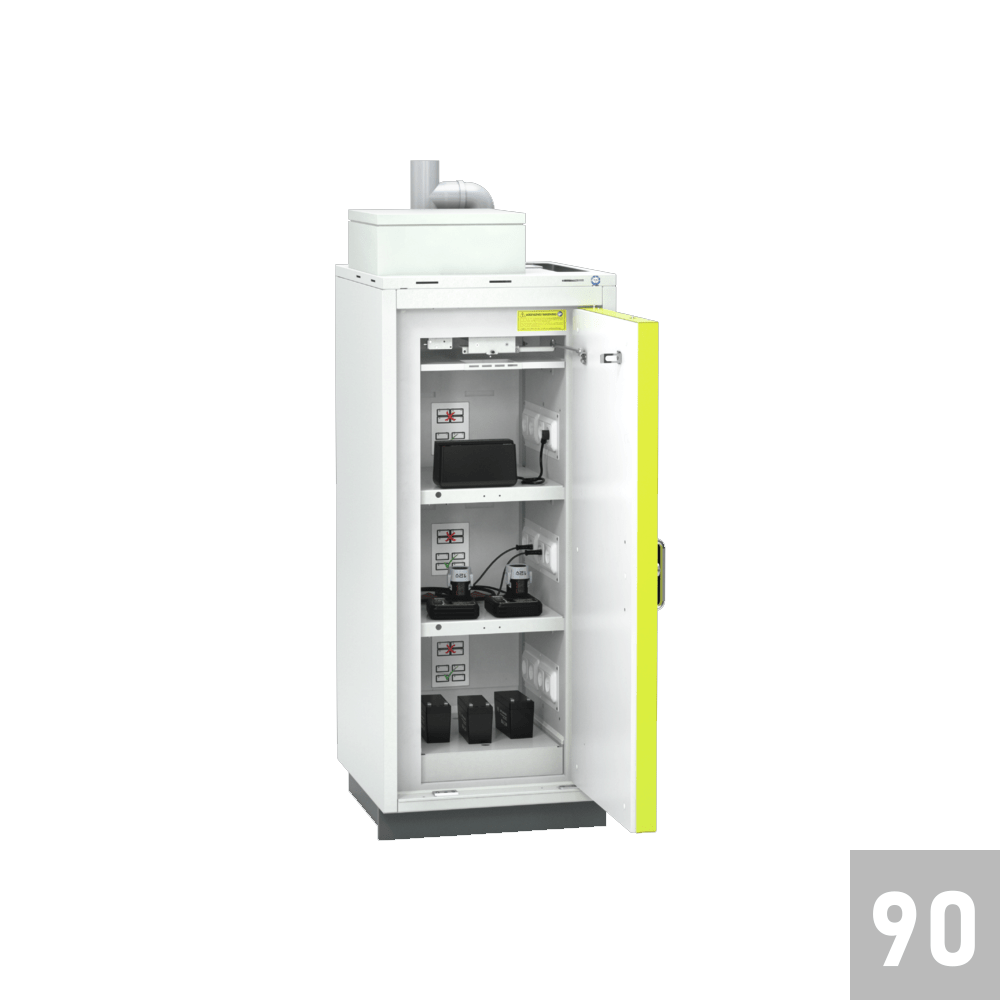

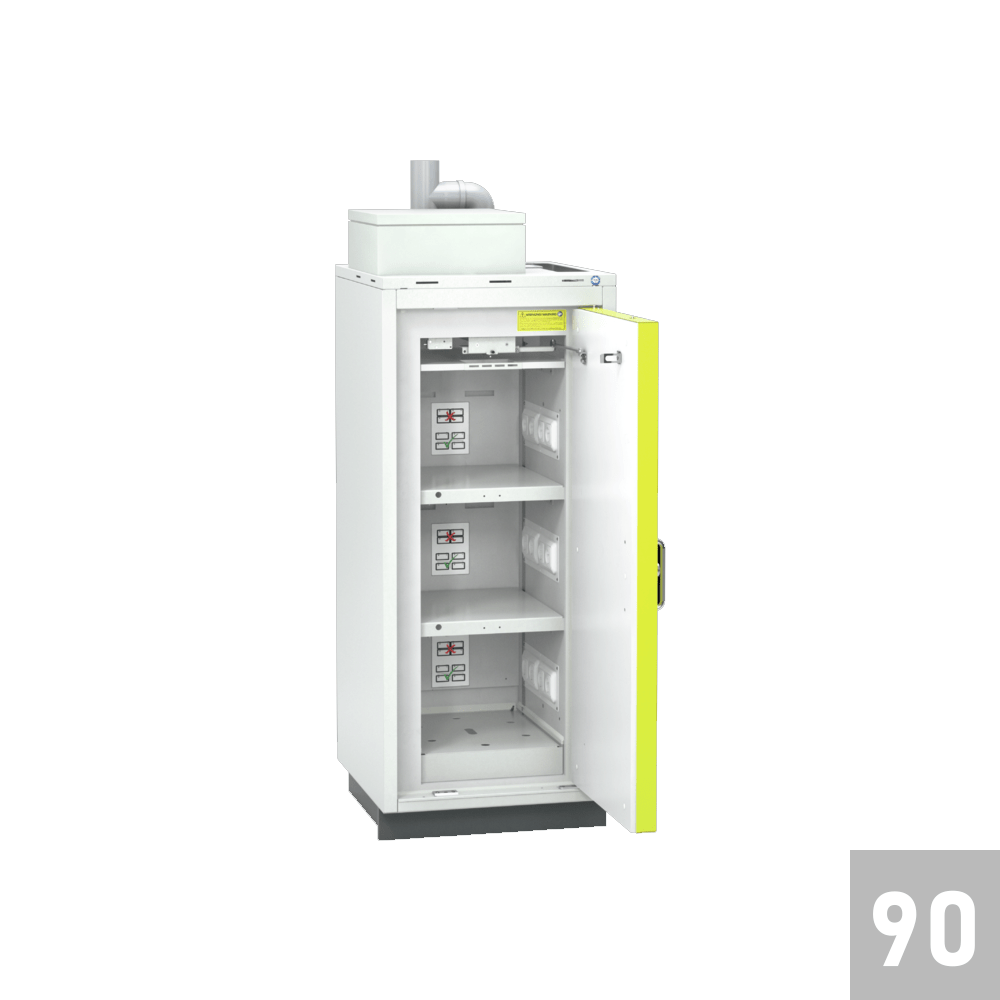

The door remains open in any position but closes automatically in case of fire. Cylinder locks ensure secure access, while a backdraft lock activates after an internal fire. The bottom tray and three storage levels, made of sheet steel in RAL 7035, provide structured storage. Each level contains one storage area with four sockets. Fuse protected power supply for chargers is provided and ready to plug in.
Additionally, the cabinet offers practical features. An exhaust air connection on the roof supports ventilation, while a visual inspection opening allows airflow monitoring. The roof also includes an earthing connection. Interior fittings ground securely to the carcass. Adjustable feet enable level positioning. The set-back base in RAL 7015 improves stability. A plug-ready CEE L+N+PE 6h connection ensures simple power integration. Supplied ready to plug in with reverse polarity protected plug including fuse box with residual current circuit breaker – fused with residual current circuit breaker for disconnection from the power supply in the event of a fault.
This cabinet is perfect for environments that need secure and organized battery storage.
Additional information
| Weight | 230 kg |
|---|---|
| Range | Battery – Station |
| Model | Station (sockets) S |
| Certificate type | Type 90 |
| Certificate Standard | Type 90 lithium ion batteries |
| Number of doors | 1 |
| Number of storage levels | 3 |
| Number of storage areas | 1 |
| External dimensions(mm) (W x D X H) | 894x612x2085 |
| Supply voltage | single-phase 230V/50Hz |
| Equipment package | Without signal transmission |
| Door technology | Wing door technology |
| Model reference | 69-130667-070 |
