Angled Connector | b.safe
€117.08 ex. VAT
Description

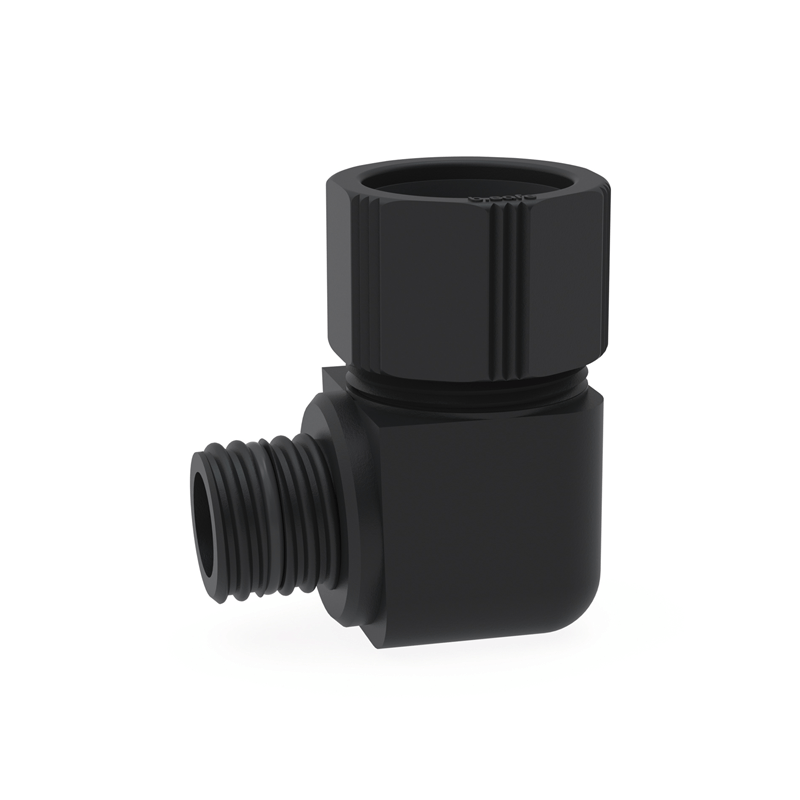

The Angled Connector offers secure and efficient connections for laboratory and industrial waste management. Crafted from static dissipative PE-EX, this 90° connector ensures safe handling of waste liquids, making it ideal for HPLC, UPLC, ÄKTA, and PE-EX systems.
Additionally, it features two connection types:
- Connection 1: A clamp connection for inserting and clamping Waste Pipes (O.D. 32 mm)
- Connection 2: A male thread GL25, allowing easy transition to flexible Waste Tubes

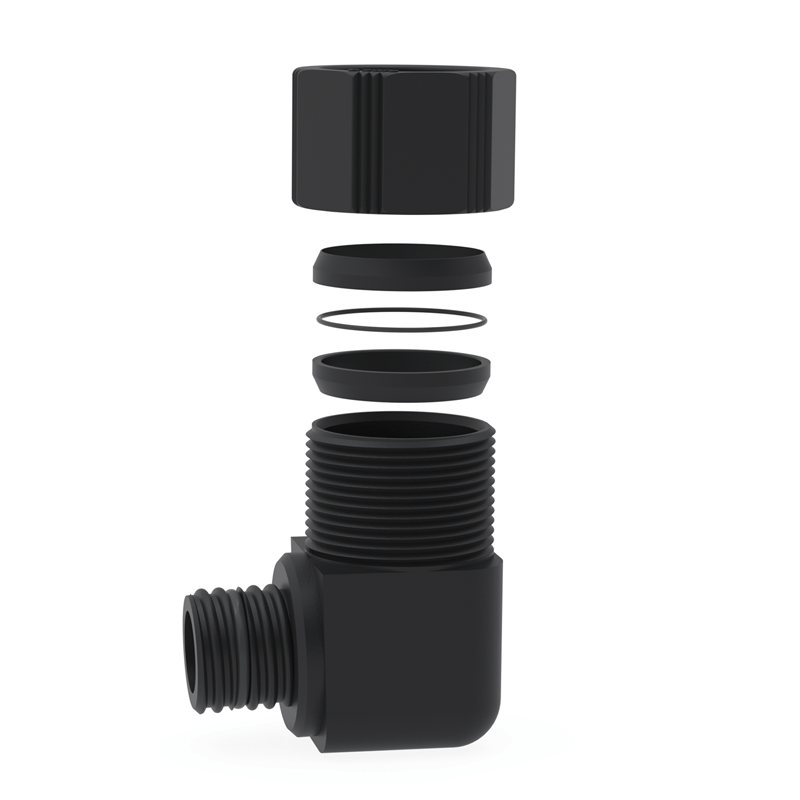

Moreover, each clamp connection includes:
- A lock nut in PE-EX for added security
- Two conical sealing rings in PTFE-EX to ensure a tight seal
- An O-ring in EPDM, preventing leaks and maintaining system integrity
Furthermore, the static dissipative properties of PE-EX help prevent static buildup, enhancing safety in environments with flammable solvents. By offering a leak-proof design, this connector supports efficient and safe waste disposal in demanding laboratory conditions.
Additional information

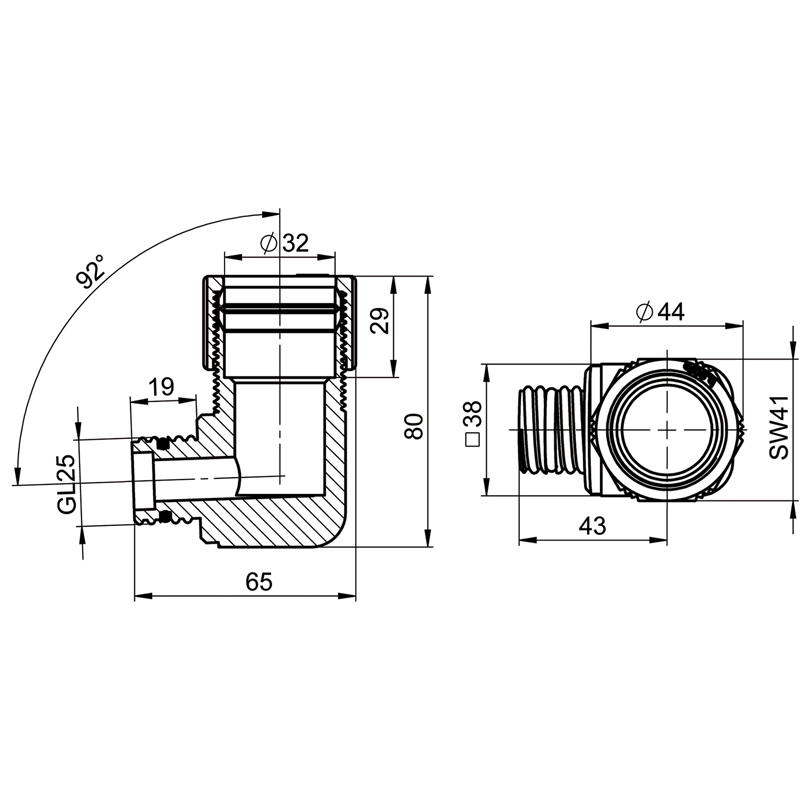

| Dimensions [(L x H) mm] | 64 x 77 |
|---|---|
| Connection 1 | Clamp connection Ø 32 mm |
| Connection 2 | Male |
| Shape | L |
